Home elevators and wheelchair lifts have many similarities; both can improve accessibility in homes and provide a more convenient and comfortable life for wheelchair users or other people with mobility impairments.
However, home elevators and wheelchair lifts are not the same product category and have significant differences in accessibility design.
Next, we will provide you with a detailed analysis of the differences between these two devices—covering aspects such as appearance, basic parameters, cost, and benefits—aimed at helping you find the right home accessibility renovation solution.
What is Wheelchair Lift?
Wheelchair lifts are also known as platform lifts or barrier-free lifting platforms.
It is a fixed installation, mainly used to help wheelchair users cross stairs and overcome differences in ground height.
Wheelchair Lift Work Principle
Wheelchair lifts can be divided into four parts: lifting platform, guide rail system, drive system, and control system. When it is working, the control system first receives the user’s command and starts the drive system.
The drive system provides power to the platform, enabling it to move along the guide rails.
Wheelchair Lift Types
Wheelchair lifts can be divided into vertical wheelchair lifts and inclined wheelchair lifts, depending on the track and the installation scenario.

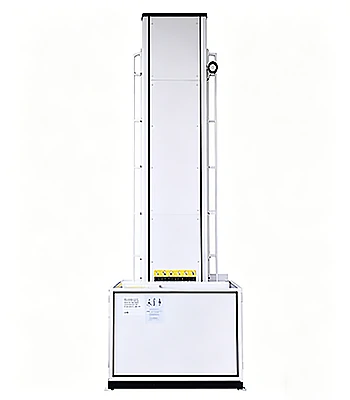

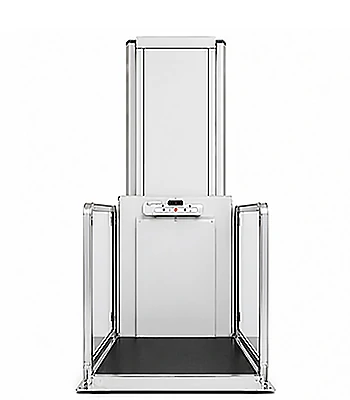

Vertical Wheelchair Lift
A vertical wheelchair lift is also known as a vertical platform lift, and is usually installed on uneven ground, such as in the height of the tower, or in gates, gardens, etc.
Its guide rail is perpendicular to the ground and can extend upwards by several to over a dozen meters, connecting multiple floors; it operates at a higher speed than inclined wheelchair lifts.

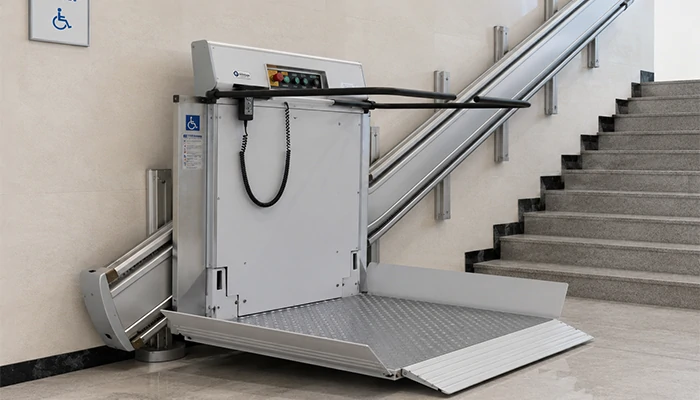

Inclined Wheelchair Lift
The inclined wheelchair lift is installed on the staircase, with the shape and length of the guide rail determined by the configuration of the stairs. The operating path of this type of wheelchair lift forms an angle with the ground; it is suitable for both straight and curved staircases and does not require additional space.
Inclined wheelchair lifts are suitable for connecting levels in two-story homes and operate at a gentle speed.

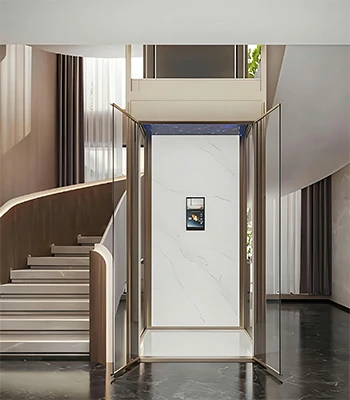

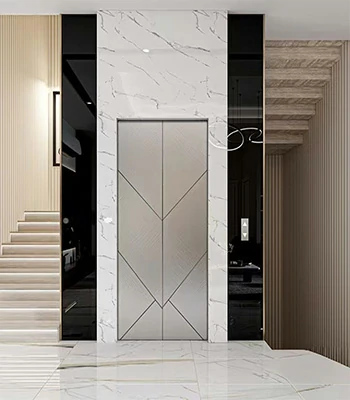

What Is A Home Elevator?
A home elevator is a compact private elevator designed specifically for residential buildings such as villas, duplexes, and self-built homes.
It is typically intended solely for use by household members, helping them move more conveniently between floors while also enhancing the home’s aesthetic appeal.
Home Elevator Work Principle
In addition to featuring an enclosed car—which distinguishes them from vertical wheelchair platform lifts—home elevators are equipped with guide rail, drive, and control systems.
Home elevators are essentially the same; after receiving external commands, the drive system transmits signals to the drive system, causing it to drive the car along the guide rails.
Home Elevator Lift Types
Home elevators can be classified into hydraulic elevators, traction elevators, screw elevators, and vacuum elevators based on their drive mechanism.

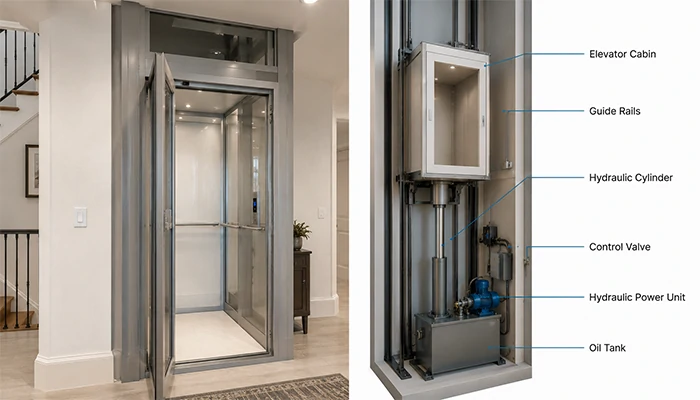

Hydraulic elevators use a hydraulic pump station (motor + hydraulic oil pump) as their power source. The electric motor drives the hydraulic oil pump to operate, and the hydraulic oil enters the oil cylinder, creating a pressure difference that pushes the piston to push the car upward.

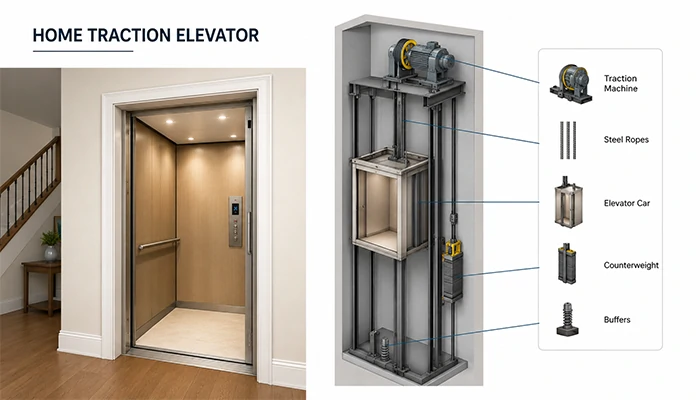

Traction elevators use the static friction generated between the steel wire ropes or steel wires that drive the motor and suspend the counterweights and the car at both ends, and the grooves of the traction sheave to pull the elevator up and down.

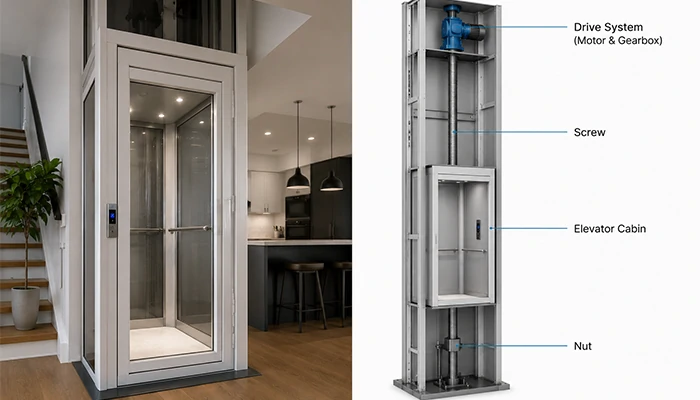

Screw Elevator
A screw elevator is a precision-assembled mechanical device. The motor drives the screw to rotate, causing the nut platform that meshes with the screw to move upward, thereby raising the car.
Vacuum Elevator
The vacuum pump installed at the top creates an air pressure difference between the top and bottom of the car by pumping and supplying air, which drives the car to move.

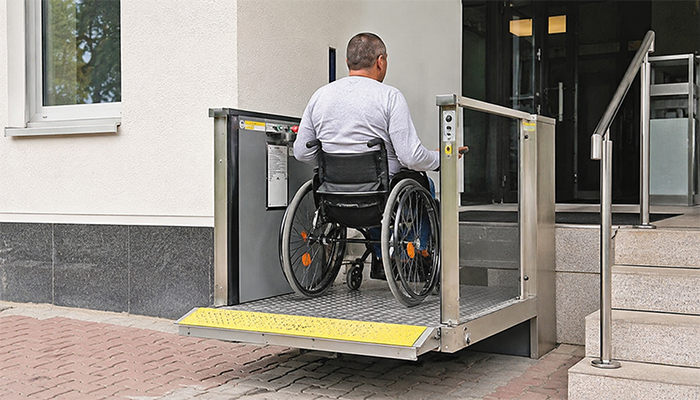

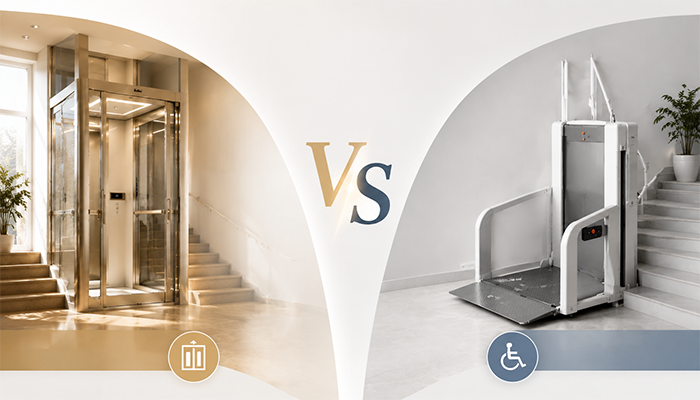

Home Elevator VS Wheelchair Lift: What’s the Difference?
| Home Elevator | Wheelchair Lift | |
| Category | Special equipment | Accessible lifting equipment | |
| Target Audience | All family members | Wheelchair users, the elderly, and people with limited mobility | |
| Mode of Operation | Vertical up-and-down movement | vertical or inclined operation | |
| Structure | Enclosed car + hoistway + landing doors | Open platform | |
| Drive | Traction, hydraulic, screw, vacuum | Mainly hydraulic | |
| Capacity | 400-600kg | 250kg-350kg | |
| Passenger Number | 2-6 person | Wheelchair only + 1 accompanying person | |
| Travel Height | 21m,2-7 floors | 1-12m,2-4 floors | |
| Travel Speed | Faster | Slower | |
| Ride Comfort | High | Ordinary | |
| Aesthetics | High, integrated with residential buildings | Focus on functionality | |
| Installation Location | Indoor and outdoor | Indoor and outdoor | |
| Design Life | 20-30 years | 10-15 years | |
| Civil Engineering Requirements | Shafts, pits, or supporting structures may be required. | Low civil engineering requirements | |
| Installation Period | Longer | Shorter | |
| Safety Features | Complete elevator safety system | Basic protection | |
| Usage | Carry both people and cargo. | People and wheelchairs | |
| Acquisition Cost | Higher | Lower | |
| Maintenance Complexity | More complicated | Relatively simple | |
| Noise Level | Small | Medium | |
| Increase The Value of The Property | Obvious | Minimal impact | |
| Space Occupied | Medium | Small | |
| Applicable Scenarios | Villas, duplexes, and multi-story residential buildings | Porch, balcony, garage entrance, and accessibility modification projects |
Home elevators primarily solve the problem of family members going up and down stairs and improve the mobility of elderly people with limited mobility, thus meeting the needs of long-term home-based elderly care. Its main purpose is to overcome the difficulties of movement between different floors and expand the user’s usable area.
Most wheelchair platform lifts are more often used to overcome building obstacles, such as doorway steps, porch height differences, and garage entrance height differences. Wheelchair lifts have a short operating distance, and the same equipment can also be installed in public places such as squares, parks, and entrances to residential areas.
In addition, there are significant differences in the structural and installation requirements of home elevators and wheelchair platform lifts. Residential lifts have fully enclosed cabins, are usually installed in a shaft, and have a pit. However, most home elevators no longer require a machine room.
Most wheelchair lifts are non-enclosed structures, and even those that are enclosed still operate on an open platform. Furthermore, wheelchair lifts do not require shafts, pits, or machine rooms.
Home Elevator and Wheelchair Lift Cost
The cost of a residential lift is divided into equipment costs, installation costs, building renovation costs, and maintenance costs.
The equipment cost ranges for different types of residential lifts are as follows:
| Type | Devices Cost |
| Traction Elevator | $15,000–$35,000 |
| Hydraulic Elevator | $10,000–$25,000 |
| Screw Elevator | $15,000–$40,000 |
| Vacuum Elevator | $20,000–$70,000+ |
Installation Costs of Home Lift
| Type | Installation Cost |
| Traction Elevator | $5,000 – $12,000 |
| Hydraulic Elevator | $4,000 – $10,000 |
| Screw Elevator | $3,000 – $8,000 |
| Vacuum Elevator | $3,000 – $8,000 |
Building Renovation Costs of Home Elevator
The specific cost of building renovation depends on the type of residence, number of floors, internal layout, national or regional regulations, and the installation requirements of the selected home elevator.
Maintenance Costs of Home Elevator
The average annual maintenance cost for different types of home elevators is:
| Type | Maintenance Cost |
| Traction Elevator | $600 – $1,500 |
| Hydraulic Elevator | $500 – $1,500 |
| Screw Elevator | $500 – $1,200 |
| Vacuum Elevator | $300 – $1,000 |
Due to their simple structure, wheelchair lifts cost less than home elevators. The specific costs for the wheelchair lift are as follows:
Device Cost of Wheelchair Lift
| Type | Device Cost |
| Vertical Wheelchair Lift | $4,000 – $25,000 |
| Inclined Wheelchair Lift | $4,500 – $12,000 |
Installation Cost of Wheelchair Lift
| Type | Installation Cost |
| Vertical Wheelchair Lift | $1,500 – $8,000 |
| Inclined Wheelchair Lift | $1,200 – $6,000 |
Other Expenses about Wheelchair Lift
| Vertical Wheelchair Lift | Inclined Wheelchair Lift | |
| Building renovation costs | $500 – $10,000 | |
| Custom Track Solutions | $3,000 – $10,000+ |

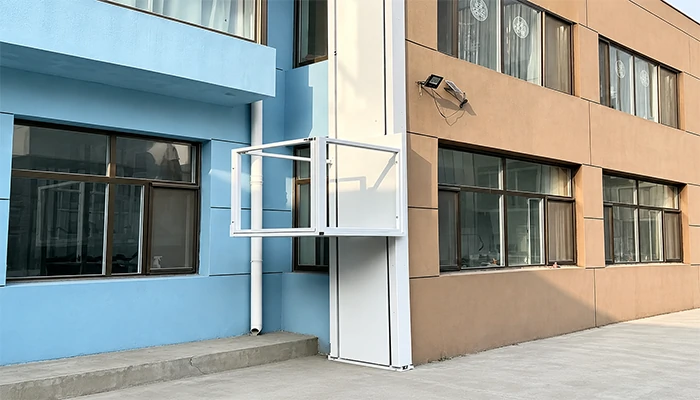

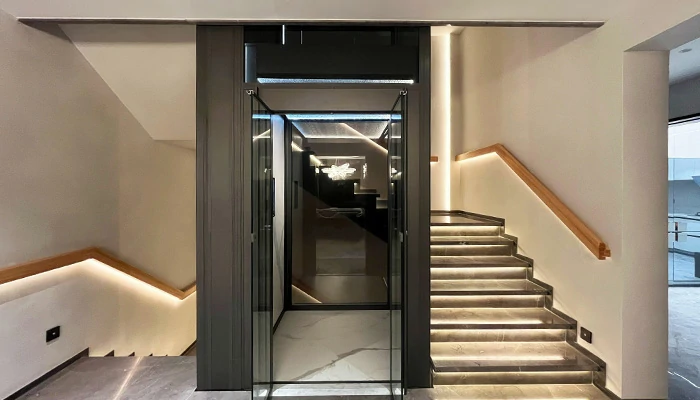

Benefits of Home Elevator and Wheelchair Lift
The benefits of home elevators are as follows:
- Convenient for travel; suitable for the whole family. A home elevator can replace steep, strenuous stairs, making moving between floors easier and saving both time and effort.
- A helper for moving heavy objects. Home elevators can transport both people and goods; with a high load capacity, they make it easy to move items such as washing machines, vacuum cleaners, and strollers up and down the stairs.
- Living experience and comfort have been enhanced. The home elevator operates smoothly, with no jarring sensations during startup or stopping, and no vibration during ascent or descent. Additionally, it runs quietly at night.
- Enhance residential safety. Home elevators offer a high level of safety and can serve as an alternative to stairs, reducing the risk of falls for the elderly or individuals with limited mobility. It also ensures the safety of children when going up and down the stairs.
- Increase the value of the house. Home elevators are considered modern, high-end home fixtures that combine practicality with aesthetic appeal. It can boost the property’s resale value and attract more potential buyers.
- Supports accessibility requirements. Designed for accessibility: Home elevators can be customized with dimensions and door configurations suitable for wheelchair use.
- Flexible installation. It can be installed either indoors or outdoors, and indoor installation is not restricted to placing the unit against a wall.
- Fully customized. Home elevators are custom-made products; everything from shape, color, and appearance to functionality can be selected according to personal preference.
- High level of safety. Standard features include an overspeed governor, anti-fall safety gear, emergency power supply for power outages, automatic floor leveling during power outages, an anti-crush safety contact plate, and a light curtain sensor for finger protection.
Benefits of wheelchair lifts:
- Easy to retrofit, compact footprint. Wheelchair lifts do not require a standard elevator shaft or pit, resulting in minimal construction work. Moreover, it is compact in size and can be installed next to steps, along the side of a staircase, or in the corner of a small courtyard.
- Easy to install. Wheelchair lifts feature a simple structure and can usually be installed in just 1 to 3 days.
- Designed specifically for wheelchair users. Features a non-slip platform and safety guardrails; the interior is spacious enough to accommodate a wheelchair without crowding, eliminating the need for physical transfers.
- Improve the accessibility of the home environment. It can bridge short height differences indoors and outdoors, enhancing the mobility of wheelchair users and individuals with limited mobility.
- Low cost. The costs associated with the equipment, installation, civil works, and maintenance of wheelchair lifts are lower than those for home elevators.
- High level of safety. Standard features include guardrails, an emergency stop button, a hydraulic explosion-proof valve, and a manual pressure relief mechanism.
Which Option Is Better for Your Home?
There is no absolute superiority or inferiority between home lifts and wheelchair lifts; each has its own advantages, and the best choice is simply the one that best meets your needs.
If you need to connect multiple floors, a home elevator is a better choice, offering an enclosed space, superior safety, and greater comfort; however, if the goal is simply to help wheelchair users overcome steps at an entrance or navigate a small change in elevation, a wheelchair lift offers distinct advantages.
If you plan for the entire family to use it over the long term or wish to meet long-term aging-in-place needs, please choose a home lift; if it is intended solely for a wheelchair user, a wheelchair lift is more suitable.
In terms of budget, if your funds are limited, opting for a wheelchair lift can essentially meet your needs. However, with a sufficient budget, the experience of using a home elevator is superior.
Finally, if you wish to derive greater value from the installation, we recommend choosing a home lift to elevate your residence into a high-end, premium home.
Conclusion
Home Elevators vs. Wheelchair Lifts: whichever you choose, the ultimate goal is to enhance mobility, safety and convenience while maintaining long-term independence.
To obtain accessibility lifting equipment that best aligns with the aforementioned goals and meets your specific additional requirements, please contact Anter to schedule a consultation today. Our experts will guide your decision-making and develop a detailed, suitable solution.
Faq
Can I install a wheelchair lift outdoors?
Yes. Wheelchair lifts are suitable for outdoor installation, helping wheelchair users overcome differences in ground elevation. It is often installed in locations such as outdoor porches, balconies, gardens, and garage entrances.
Can home lifts be installed in older homes?
Yes. Anter specializes in manufacturing and installing residential elevators for compact, older homes; featuring a self-supporting frame, these elevators eliminate the need for a standard shaft, pit, or machine room. It requires fewer structural modifications to the house, making it easier to install in an older home.
Can a wheelchair lift replace a home elevator?
In certain situations—such as cases involving a small change in elevation or a building of two to three stories—a wheelchair lift can serve as an alternative to a home elevator. However, for higher floors and a pursuit of greater comfort, a home elevator is irreplaceable.
Are a wheelchair lift and home elevator covered by Medicare or insurance?
Medicare does not fully cover the cost of wheelchair lifts and home elevators. A small number of Medicare Advantage (Part C) plans and long-term care insurance policies may offer partial subsidies. If you require full financial support, you could try inquiring with local medical institutions or local accessibility assistance programs.
What happens during a power outage?
In the event of a sudden power outage, a home elevator will activate its backup power supply within milliseconds to move the elevator to the nearest floor and open the doors. In the event of a power failure, the platform of this standard wheelchair lift immediately engages its brake and locks in place, ensuring there is absolutely no descent.
High-end wheelchair lift models are equipped with a backup power supply that automatically provides the necessary power to reach the ground.
