Your Reliable Hydraulic Home Elevator Manufacturer
- With 16 years of experience, we have completed over 10,000 home elevator projects, including over 2,000 hydraulic home elevators.
- With 8 years export experience, we have served the global market and are familiar with various project requirements and standards.
- A 10,000 ㎡ factory with 3 advanced production lines. Direct from the manufacturer, offering affordable prices, and accepting large-scale production orders.
- We support ODM/OEM services, and can customize everything from materials, accessories, finishes, shapes, and sizes to lighting, door systems, and flooring.
- Our hydraulic core components are all imported from Italy and Germany, and the parts have complete test reports. The whole machine has ISO9001, CE, and EN81-41 certifications.
- We offer 24/7 online support, and provide a 1 year warranty as well as lifetime free remote guidance.
Flexible Installation Solution from Hydraulic Home Elevator
Anter home hydraulic elevators offers a variety of installation options. Indoor installations include standard living room, stairwell gaps, closet-to-closet installations, walk-in closet installations, and installations on sloping/vaulted ceilings. Outdoor installations include villas, duplexes, and apartment building facades. In short, our elevators can be installed as long as one side is against a wall. Therefore, you don’t need to worry about the elevator being incompatible with your installation.
Anter's Home Hydraulic Elevator Meet Your Project Requirement
Home hydraulic elevators are a residential elevator solution that relies on hydraulic drive. The technology is very mature, with high safety, low project implementation risk, and low cost.
Its piston-driven system determines its high load capacity and strong stability; its compact structure determines its flexible installation capability in different projects; its simple mechanical mechanism determines its low failure rate and low maintenance cost.
We have upgraded and modified the traditional residential hydraulic elevator ．
Our elevators come with a built-in frame, requiring less civil engineering work. They do not need traditional concrete shafts, deep pits, high ceilings, or separate machine rooms, effectively reducing the total cost. Furthermore, this structure allows the equipment to be installed in various locations, including newly built houses, existing houses, indoors, outdoors, in the middle of staircases, and in corners of residences—making its application very flexible.
Our home hydraulic elevators are an ideal choice for senior living housing projects. On the one hand, we use a silent hydraulic pump station, imported proportional valves, wear-resistant nylon pulleys, and sound insulation cotton, which can maintain near-silent operation. On the other hand, our elevators are equipped with a variety of reliable brand safety devices, including: ARD (Automatic Descending Device), emergency descent system, door interlock system, overload protection, etc. These devices can effectively reduce the occurrence of malfunctions and entrapment situations, helping your project reduce after-sales needs and maintain customer satisfaction.
We have also optimized the basic control logic of the hydraulic power transmission, increasing the speed to 0.3m/s. In addition, our comprehensive customization service allows us to create comfortable and aesthetically pleasing vertical lifting equipment – perfectly suited for all high-end residences, luxury villas, and duplex projects.
We support professional on-site measurements and provide free design drawings and solutions to ensure that every residential hydraulic lift meets your project needs.
Choose by Hydraulic Elevator Car Decoration
We can customize any style of home elevator car you want.
This is a hydraulic elevator car with a faux wood finish, featuring a dark brown main color scheme and warm lighting, creating an overall grand and luxurious feel.

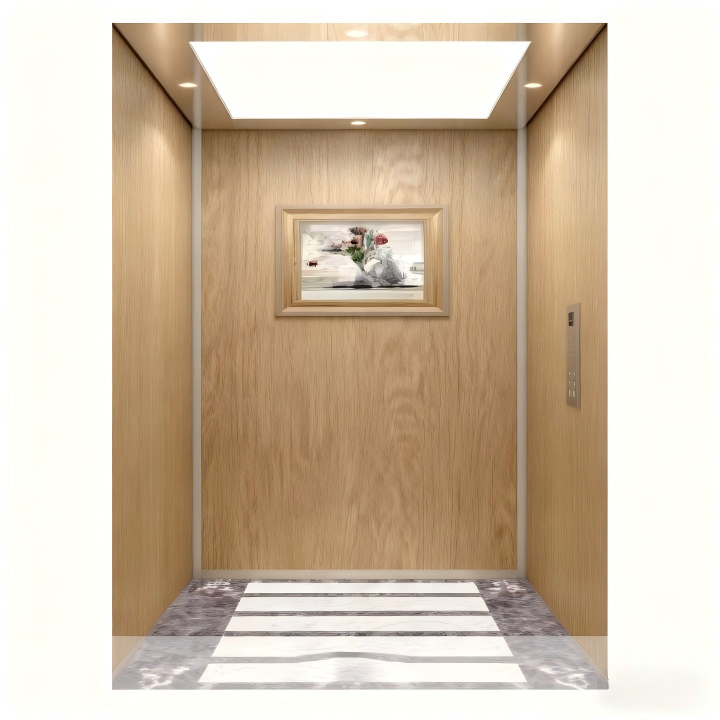

The AT109 hydraulic elevator car features a light wood tone and bright lighting, presenting a fresh and elegant style that is suitable for modern homes.

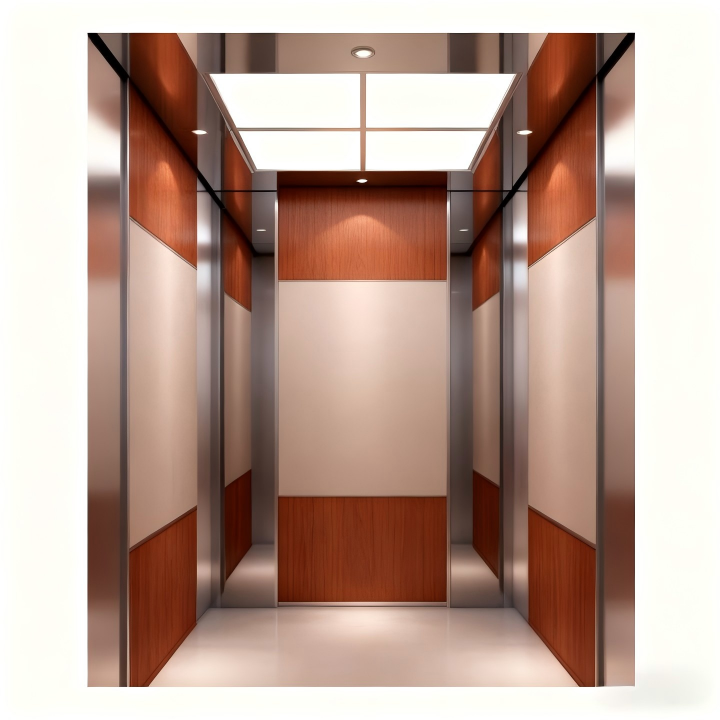

The AT114 Hydraulic Elevator Car features a relatively complex design, with two color-coated panels seamlessly integrated, complemented by square headlights, creating a formal aesthetic.
The highlight of this hydraulic elevator car is its sculpted back. We offer several styles for you to choose from, allowing you to create the most luxurious home.
This is a modern, light luxury style hydraulic elevator car. The overall design is high-end and elegant, a clever combination of metal and stone.

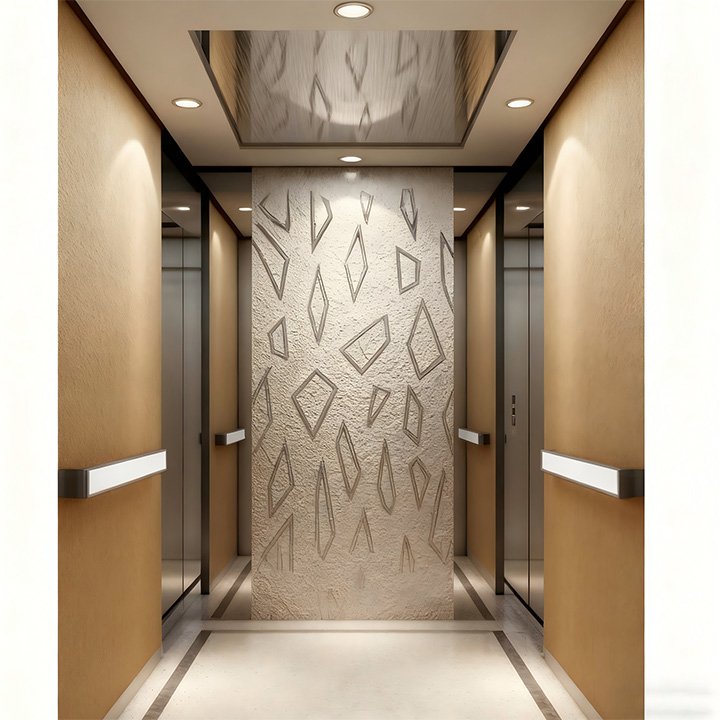

The AT117 hydraulic elevator features a champagne-colored car with a simple geometric back panel and a glass top, making it suitable for artistic residences.
This sedan cabin has a more upscale and sophisticated feel, with the combination of bright yellow and rose gold exuding understated luxury.
The elevator car of this hydraulic elevator represents a warm and cozy home, with warm lighting and a warm-toned design that makes riding in the elevator feel like relaxing at home.
Optional Home Hydraulic Lift Models
Below are four residential hydraulic elevator models we are showcasing. We can also customize other models according to your needs.

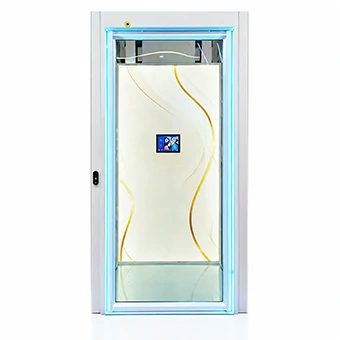

ATD006Ceiling: Multi-colored starry sky ceiling
Car walls: Transparent tempered glass
Rear wall: Tempered glass illuminated back panel, L-shaped car
Door: Automatic door
Floor: PVC

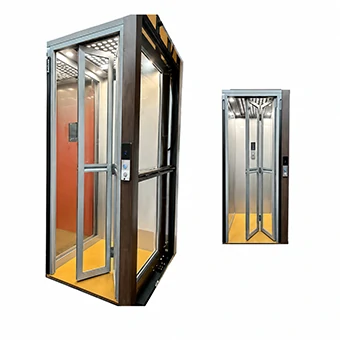

JH-400Ceiling: Mirrored stainless steel with LED dot matrix lighting
Car walls: Dark metal frame + tempered glass
Rear wall: Tempered glass
Door: Automatic folding door
Floor: Marble-like PVC flooring

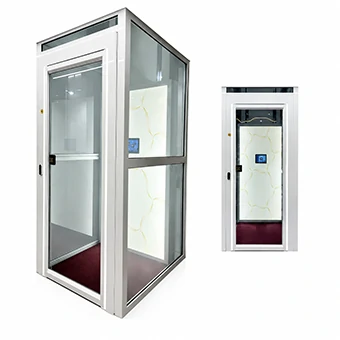

JL-400Ceiling: White spray-painted metal ceiling
Car walls: White metal frame + transparent tempered glass
Rear wall: Fresh and elegant illuminated back panel
Door: Automatic door
Floor: Wood grain flooring

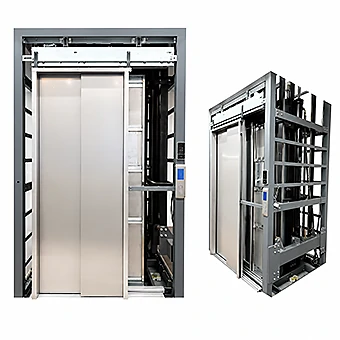

JM-400Ceiling: Mirrored stainless steel ceiling + LED dot matrix lighting
Car walls: Mirrored stainless steel
Rear wall: Mirrored stainless steel + etched pattern
Doors: Double doors
Floor: PVC non-slip flooring
Why Are Our Home Hydraulic Elevators A Worthwhile Choice?
Anterlift produces top-quality products to meet all your needs, making us your first choice.
Our hydraulic lift for home can meet the needs of different projects and provide flexible solutions that are perfectly adapted to residential homes.
We use a 5×5 galvanized square tube frame and a powder coating process, so there is absolutely no need to worry about the elevator being corroded or rusted.
Compared to traction elevators, hydraulic elevators have lower initial costs, and as a source manufacturer, we sell directly, offering you more favorable prices.
We use Audepu speed limiters and safety clamps, along with a 512 light-speed light curtain sensor, to provide long-term and stable protection for your safety.
It is suitable for any small space. The smallest car can be customized to 5108520mm, and the whole machine covers an area of 760*1000mm.
The biggest advantage of our hydraulic elevator system is its stable operation. There is no jerking when starting or stopping, and the ascent and descent are very smooth.
The hydraulic lift for home use boasts an exquisite and compact design, with its underlying structure embodying a minimalist aesthetic.
Our hydraulic lift for residence has a simple structure and a modular design, allowing for quick installation and easy maintenance, which reduces after-sales costs.

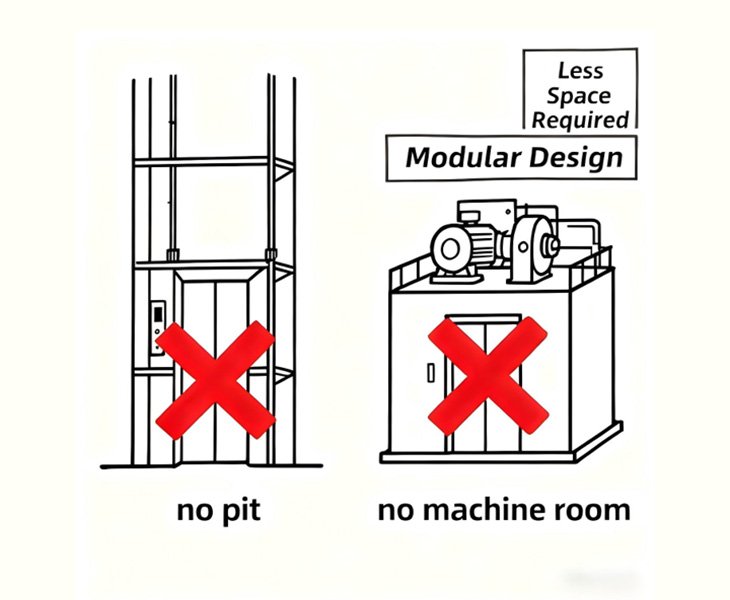

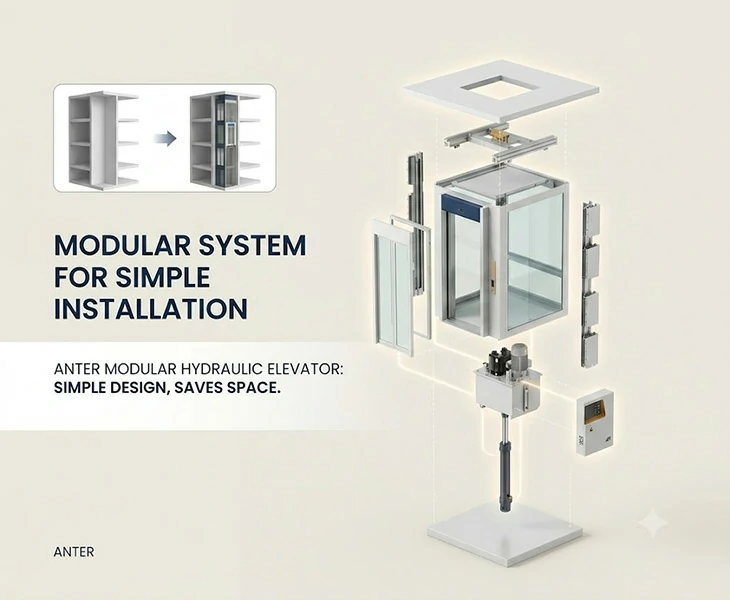

Modular Design of Anter Hydraulic Elevator
Anter hydraulic elevators adopt a modular design, divided into several parts according to structural functions, which facilitates simple installation. Only a hole needs to be opened in the ceiling, no pit/holeless and machine room design, thus saving space. They have a wide range of applications and are easy to maintain and upgrade later. Only a specific module needs to be upgraded or replaced as needed, without replacing the entire elevator, which also saves on future maintenance costs, achieving great results with little investment.
The Certifications and Honors of Anter Hydraulic Elevator
Anter Elevator Company has received numerous honors for many consecutive years, including being recognized as a trustworthy service provider and a company prioritizing quality service and credit. Having relevant certifications, it was acclaimed as one of the most recommended companies in 2024 and is a model for China home elevator manufacturers. Furthermore, regarding our products, our elevators possess CCC, ISO9001, ECM, and CE certifications, meeting international standards. Whether for personal use or resale, our products are reliable and meet the import qualifications required by certain countries, eliminating concerns about potential.

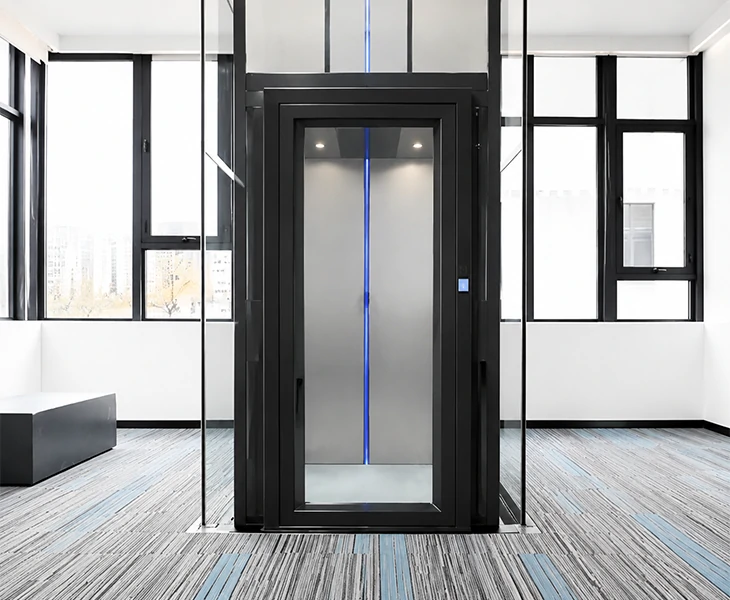

High Compatibility for Residential Projects
Because home hydraulic elevators do not require a counterweight system, they can be adapted to various irregular shafts and small spaces such as attics and duplex ceilings. In addition, we adopt a side-mounted hydraulic cylinder design, which can be placed inside the shaft or around the elevator without the need for deep pits, making it suitable for installation in already built projects. Our hydraulic home elevators also allow you to choose any door opening direction and support multiple doors to fit your different residential buildings layout.

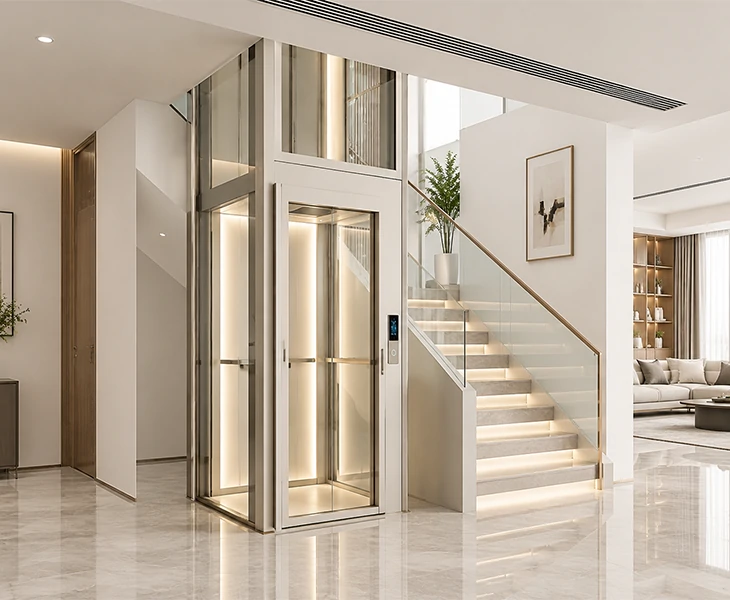

Durable and Long Lifespan
On the one hand, our hydraulic home elevators use high-configuration proportional valve pump stations and independently developed explosion-proof cylinder head frames equipped with 200mm diameter nylon wheels, which greatly extends the service life of hydraulic machinery and reduces the failure rate to the industry average by 2 percentage points.
On the other hand, we use a mature and reliable drive system. The core cylinder, sealing components, and power unit are all industrial-grade standards. They have high wear resistance during operation and effectively extend the life of the home hydraulic elevator.

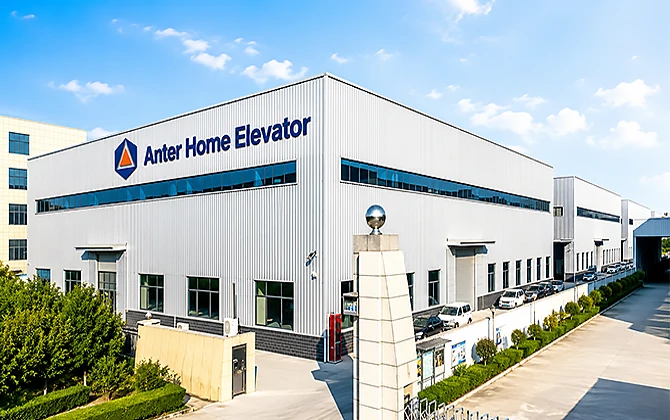

Your Professional Hydraulic Elevator Company in China
Comprehensive and comprehensive. Anterlift is a comprehensive technology-based enterprise specializing in the design, research and development, manufacturing, installation, sales and after-sales service of mid-to-high-end home elevators.We offer a variety of residential mobility solutions, including home hydraulic elevators, home traction elevators, panoramic elevators, villa elevators, circular elevators, and through-floor home elevators.
Service is our top priority. Our team offers free consultation and design services, site assessment and customization, on-site installation and testing, and ongoing support and maintenance.

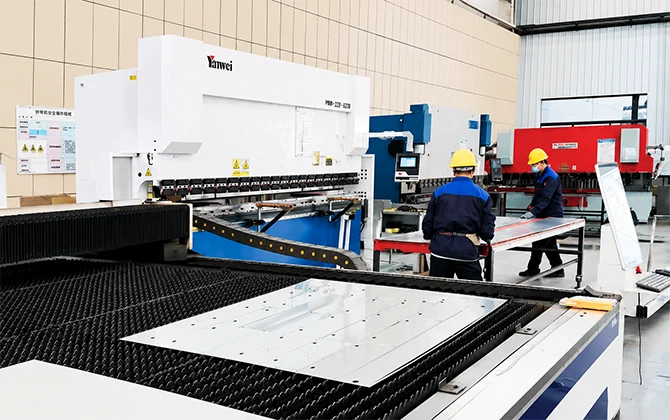

We manufacture the entire supply chain in-house. Our hydraulic home elevators are meticulously crafted down to every single component. From raw material cutting, precision welding, fine grinding, powder coating, to pre-assembly and factory testing, we complete the entire process in-house—ensuring high cost-effectiveness and eliminating middlemen from taking a cut.
Strict quality control ensures superior quality. Our home hydraulic elevators undergo rigorous quality testing (125% rated load braking test, leveling accuracy test, hydraulic system pressure test), and every component comes with a professional test report. We also possess a safety production certificate.
Finally, we have a factory and showroom in Jiyang, the hometown of elevators in China, where more than 20 currently popular elevator models are on display for you to choose from. You are welcome to visit us at any time or view the models via live stream.

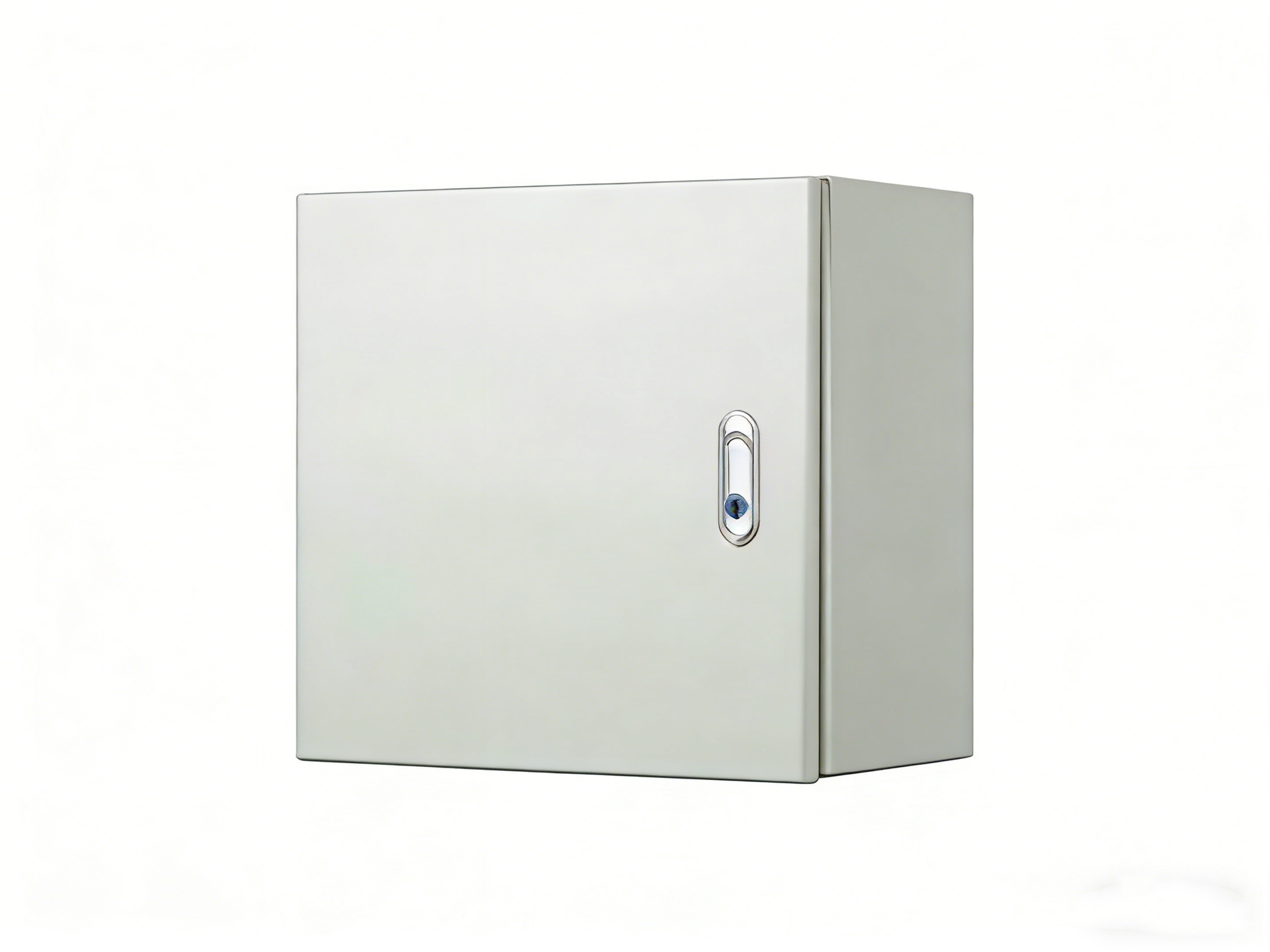

Anter home hydraulic elevators utilize high-performance mini controllers. Its dimensions is 400*500*200 mm— compact size, easy to transport and install, and aesthetically pleasing. Furthermore, we have replaced multiple electrical components with a single main control board. This highly integrated main control board ensures more stable operation.
We have also reduced the wiring within the control box, preventing loose connections.
The internal wiring of this control cabinet uses international standard wires, resulting in a lower failure rate.

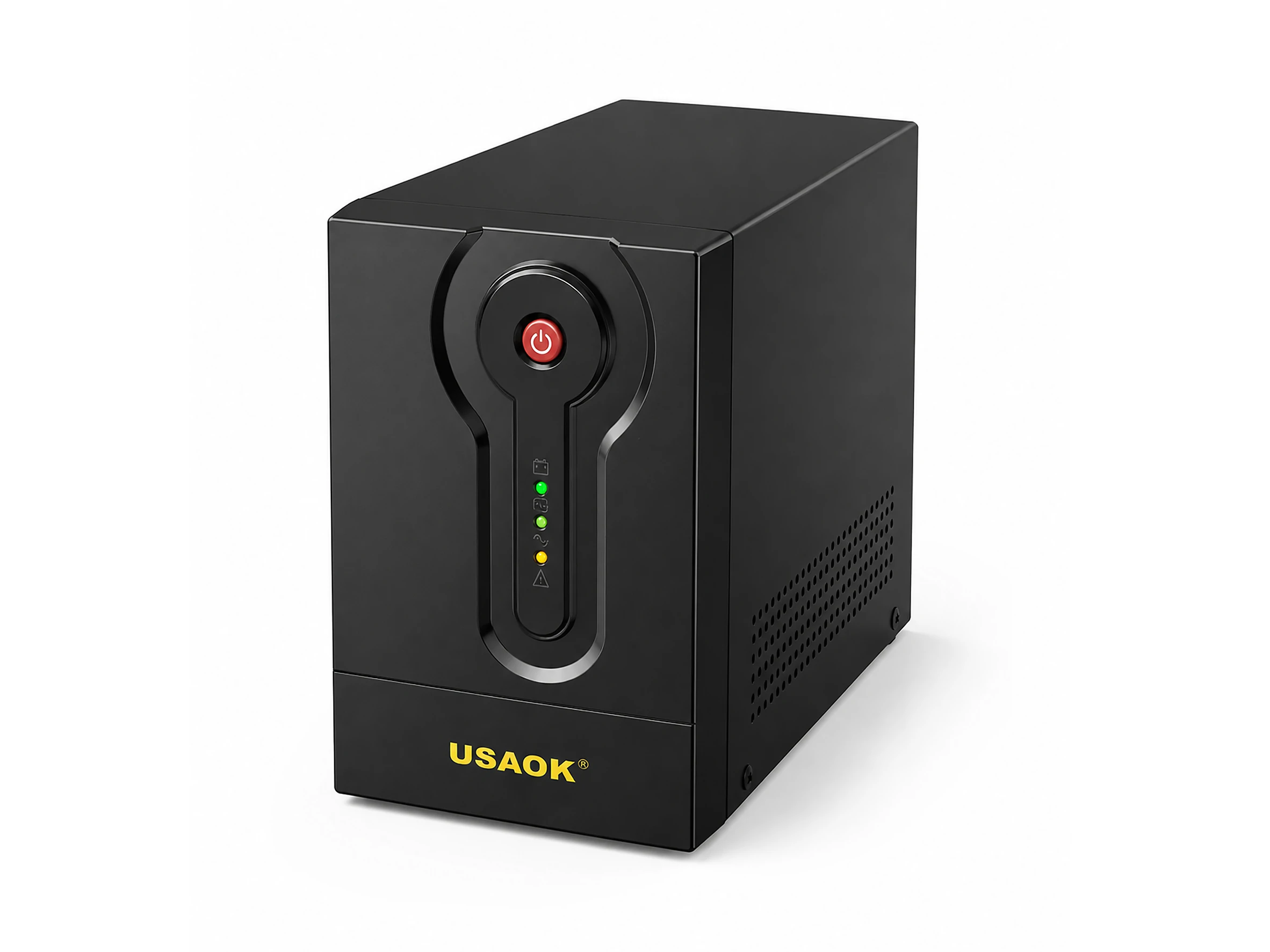

Our residential hydraulic elevators are equipped with an industrial-grade intelligent energy storage system—powered by USAOK UPS, an industry leader. In the event of a sudden power outage, the backup power supply enables a seamless, millisecond-level switchover, ensuring that elevator operations resume—without you even noticing.
It is typically designed with a wide input voltage range, enabling it to provide voltage stabilization in countries and regions prone to voltage instability.
Furthermore, our UPS can remain in standby mode for extended periods without failure and offers a long service life.
More About Our Hydraulic Elevator
Anter offers high-quality hydraulic elevator services.
- Specification
- Gallery
- Drawing
- Diagram
- Videos
Product Name: Hydraulic Home Elevator
Type: Hydraulic Backpack Elevator, Hydraulic Gantry Elevator
Drive System: Hydraulic Drive
Load Capacity: 300-630kg
Lifting Height: 1-12m
Service Floors: 2-4 stops
Lifting Speed: 0.15m/s-0.30m/s
Power Requirements: 220V/380V
Platform Type: Fully enclosed car
Door Type: Automatic door/Electric door
Aisle Design: Single-sided/Through-through/Three-sided aisle available
Elevator Materials: Tempered glass/Stainless steel/Aluminum alloy
Installation Time: 3-10 days
Maximum Car Size: 1100*1100mm
Minimum Car Size: 510*520mm
Top Floor Height: Not less than 2.5m
Installation Requirements: No pit, machine room, or shaft required
Operating Environment: Non-low temperature environment
Maintenance: Professional maintenance every 1-2 years
Application Projects: Luxury villas, duplexes, age-friendly housing, barrier-free housing, outdoor projects, old house renovation projects
| Capacity（kg） | Speed（m/s） | Car size( mm） | Door opening size（mm） | Shaft dimensions （mm） | |||||||
| CW – Width | OD -Depth | CH – Height | OP-Width | OPH -Height | HW – Width | HD -Depth | K – Overhead height | S – pit depth | R – Increase height | ||
| 320 | ±0.15 | 860 | 800 | 2000 | 700 | 2000 | 1000 | 1220 | 2500 | 150 | ≤7000 |
| 400 | ±0.15 | 1060 | 1000 | 800 | 1200 | 1420 | |||||

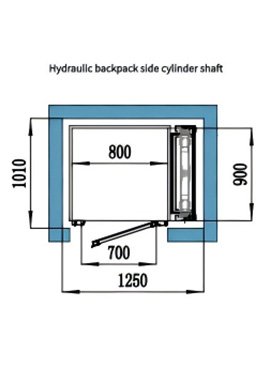

| 400 | ±0.15 | 800 | 900 | 2200 | 700 | 2200 | 1250 | 1010 | 2700 | ||
| 1000 | 1100 | 800 | 1450 | 1210 | |||||||
Testimonials
It has been a pleasure working with Anter Group. They helped me solve my house space problem, and I was able to purchase this home hydraulic elevator at a very affordable price.
Michael AndersonWe chose Anter’s installation team, and to be honest, they were really professional and meticulous. The entire installation process went more smoothly than we expected. We’ve been using the elevator for a while now, and it’s working perfectly without any problems.
James WilsonI’m very grateful to Anter for providing the hydraulic elevators for my team. This is our third collaboration, but I feel it will definitely extend beyond that. My clients are extremely satisfied with Anter’s elevators, which have brought me healthy profits.
David Thompson

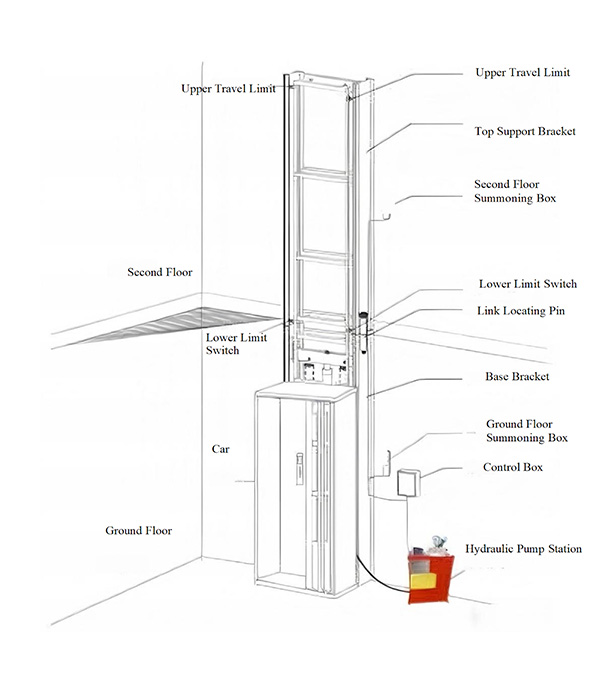

A hydraulic elevator system is a vertical transportation device that uses liquid pressure to transmit power. A hydraulic elevator consists of the following independent but interconnected systems: pump station system, hydraulic system, guide system, car, door system, electrical control system, and safety protection system.
Our hydraulic elevator is based on Pascal’s principle of fluid pressure and a 2:1 lever ratio of movable pulleys (pulley blocks).
When moving upwards, the motor drives the hydraulic pump, which forces the oil in the tank into the hydraulic pump.Hydraulic oil squeezes the plunger in the hydraulic pump upwards, pushing the pulley above, causing the steel cable passing through the pulley to lift the car upwards.
When descending, the hydraulic oil flows back into the oil tank, and the elevator’s speed is controlled by the valve group, moving downwards by its own weight.
1. It’s best to reserve 1 square meter of space in advance.
2. The ceiling height must be at least 2.5 meters.
3. Basement installations must be waterproofed beforehand.
4. In cold regions, installation must be indoors, and the pump station must be insulated.
5. Lay the power cable in advance for easy connection to the pump station later.
6. The wall supporting the elevator must be solid and have good load-bearing capacity.
With proper maintenance, a hydraulic home elevator typically has a lifespan of 20-30 years.
Our hydraulic home elevators start at $3,500 (2-story economy model) and range from $5,000 to $15,000 for custom-designed luxury models. Specific prices depend on floor height, number of stops, exterior design, features, dimensions, etc.
Contact us now for a quote on hydraulic home elevators with special offers.
Small hydraulic home elevators have a low installation threshold and are not limited by space. They can be installed in stairwell gaps, attic sides, balcony corners, narrow indoor corridors, and other locations. In addition, their compact structure requires less construction work and has a low overall cost.
Small hydraulic home elevators, with their compact and exquisite structure, perfectly match the spatial style of modern residences, enhancing the aesthetics and sophistication of the home.
Choosing our compact home elevators can meet your different project needs and increase your sales success rate.
Our hydraulic elevators come in two types: hydraulic backpack elevators and hydraulic gantry elevators. We can recommend one based on your specific needs.
Our elevators are extremely safe, equipped with six major safety features and automatic emergency rescue during power outages. They also have remote monitoring capabilities, ensuring that every trip for you and your family is smooth and safe.
Although hydraulic elevators are products of several centuries ago, they remain a trend now and will continue to be so in the future, unlikely to be phased out in the next few decades. Hydraulic elevators offer several advantages: First, they operate with lower noise levels than traction elevators. Second, they are space-efficient, requiring only a load-bearing wall instead of a dedicated machine room, making them a good option for homes already renovated and looking to add an elevator. Finally, hydraulic elevators are less expensive than traction elevators, making them ideal for families with limited budgets. In short, hydraulic elevators remain the most widely used type of elevator, and their numbers are not expected to decrease significantly in the future.
The driving principles are different: hydraulic elevators rely on a hydraulic power source, while traction elevators primarily operate through the friction between the traction sheave and steel ropes. In terms of performance, traction elevators are stable, fast, and quiet, while hydraulic elevators are relatively noisy and slower.
If you want to learn more , we wrote a professional article: hydraulic elevator vs. traction elevator.
Hydraulic elevators are slower than traction elevators, with a speed between 0.1m/s and 0.2m/s, making them more suitable for floors of 2-4 stories.
More Information about Hydraulic Elevators
Working principle of hydraulic elevators
When the elevator ascends, the hydraulic pump station provides the necessary pressure differential for upward movement. The valve assembly on the pump station controls the flow of hydraulic oil, which pushes the plunger in the hydraulic cylinder upward, thus propelling the elevator upward.
When the elevator descends, the valve assembly opens, utilizing the weight of the car (the weight of the users) to create a pressure differential. This causes the hydraulic oil to flow back into the hydraulic oil tank, propelling the elevator downward (the speed is controlled by the valve assembly).
The Cost-effectiveness of hydraulic elevators
Compared to traction elevators, hydraulic elevators are more affordable and offer better value for money in meeting the needs of families moving between floors. Firstly, the drive system of a hydraulic elevator has a relatively simple structure, and the manufacturing cost of its core components is also relatively low. Secondly, hydraulic elevators do not require complex machine rooms and have very low requirements for the shaft, eliminating the need for civil engineering modifications. This makes them ideal for elevator installation in older buildings and in situations where environmental modifications are limited. Furthermore, due to their simple structure, hydraulic elevators have a lower failure rate, significantly reducing daily maintenance costs. Therefore, choosing a hydraulic elevator is a cost-effective option.
