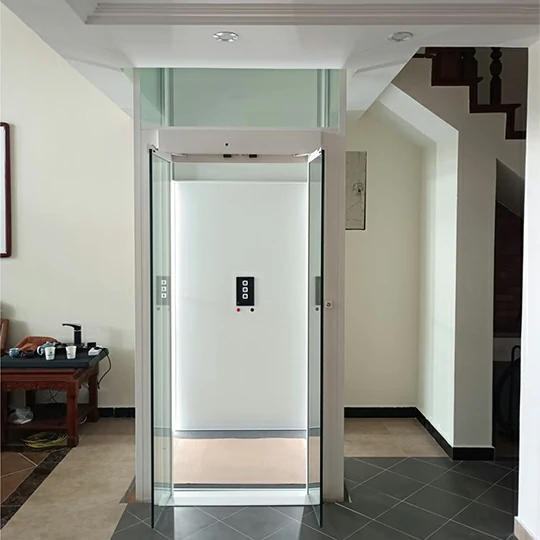

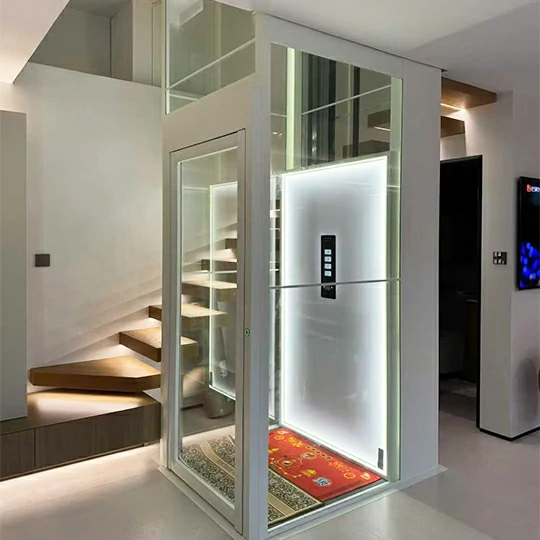

Why Choose Anter Roped Hydraulic Elevator?
- Our roped hydraulic elevators have CE, ISO9001 and other certifications, and we can provide you with original site certification.
- We provide the most suitable roped hydraulic elevator structure and installation solutions for different residential layouts.
- Our elevators undergo rigorous testing before leaving the factory, including a braking test at 125% of their rated load, and we provide certificates of conformity.
- We have extensive export experience and agents in many countries, enabling us to provide you with installation and maintenance services.
- You’ll be offered a quick quote and more professional technical support after you contact us.
The Professional Roped Hydraulic Elevator Manufacturer in China
Roped hydraulic elevators are suitable for low-to-mid-rise residential buildings; based on the foundation of traditional hydraulic elevators, they are specifically designed to address issues such as insufficient lifting height and demanding civil engineering requirements, thus offering a more reliable vertical transport solution for the home.The core components used in our roped hydraulic elevators for home are all imported from Germany and Italy. Furthermore, the framework is constructed using high-quality international-grade steel, boasting exceptional rigidity and superior load-bearing capacity. It is resistant to bending and deformation, capable of withstanding the corrosive effects of rain, snow, dust, and temperature fluctuations, thereby ensuring a long service life.
Our roped hydraulic elevators are suitable for use in attics, villas, private residences, garages, parking lots, and other locations, enabling you to reach your designated destination more easily and quickly.
Why Roped Hydraulic Elevator Is Right for You？
Our elevators occupy minimal space, requiring a footprint of just 80 x 100 for installation—truly achieving a compact exterior while a spacious interior cabin.
It comes standard with a speed governor and safety gear, and all safety devices feature redundancy, fully complying with international standards.
Our elevators utilize a hydraulic power source combined with flexible rope transmission, ensuring smooth operation and bump-free starts and stops.
The pump station for this elevator can be positioned near the hoistway without occupying any space within it, thereby allowing the hoistway to be designed with a narrower width.
Our elevator features a short hydraulic cylinder stroke, which minimizes the risk of leakage, results in a low failure rate, and ensures a longer service life.
Roped hydraulic elevators do not require direct contact with a wall; they merely require anchor points. They can be installed at any location in a residence.
We support ODM and OEM services, offering extensive customization options—including hundreds of interior decoration choices and materials,shape etc..
Our elevators require no pit and no extensive structural modifications, making them suitable for installation in older buildings and locations with poor geological conditions.

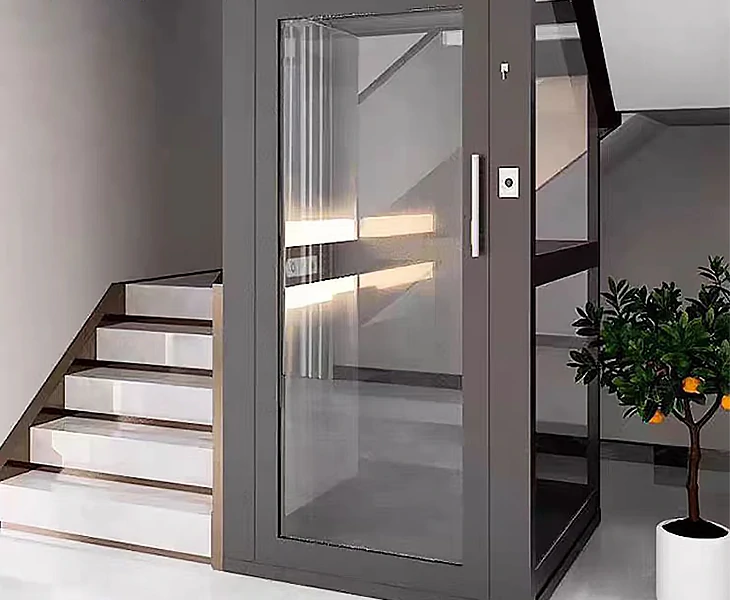

2: 1 Times The Transmission Efficiency
Our roped hydraulic elevator for home utilizes a 2:1 transmission ratio for a “multiplier effect”.Compared to traditional hydraulic elevators that use jacks, mechanical structures are more efficient in operation.When the hydraulic oil pushes the plunger up 5 meters, the wire rope will release 10 meters of length, thereby lifting the car up 10 meters. This means that the length of the hydraulic cylinder does not need to match the height of the shaft in a 1:1 ratio, which can save on purchase costs and allow the elevator to lift to a greater height.
Low Risk, No Pollution
Our roped hydraulic elevators do not require deep pits. Hydraulic cylinders and other accessories can be placed around the elevator or on the side of the shaft.This structure can prevent oil cylinders from leaking onto the ground, polluting groundwater, and affecting the surrounding environment of residential areas. In addition, when placed in the well, even if a leak occurs, it will automatically drip into the oil collection tank, thus preventing environmental pollution and affecting residential use. Furthermore, this intuitive placement method makes it easier for you to observe the condition of elevator components.

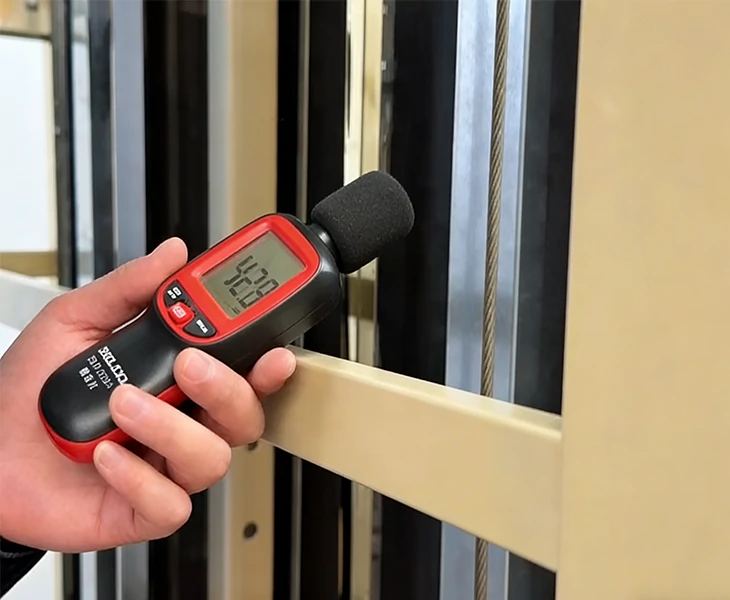

Quiet Machine Operation
Our roped hydraulic elevator is dedicated to giving you the most comfortable riding experience.Our elevators all use silent oil-immersed hydraulic pump stations and are equipped with imported proportional valves, which can ensure that the components operate without noise. In addition, it uses wear-resistant nylon pulleys with flexible rope transmission, so the car will not produce noise when it is lifted and lowered, and it will not affect the sleep of the elderly even if it is used late at night. When the roped hydraulic elevator is started or stopped , it does not make loud vibrations.
Resource
Anter is always committed to providing you with the highest quality service and roped hydraulic elevator.
We have become a leader in the industry due to advanced technology and aesthetically pleasing customization services.
We have carefully explained every aspect of our roped hydraulic elevators to you, all for your satisfaction.
Top Roped Hydraulic Elevator Manufacturer for Your Housing Project

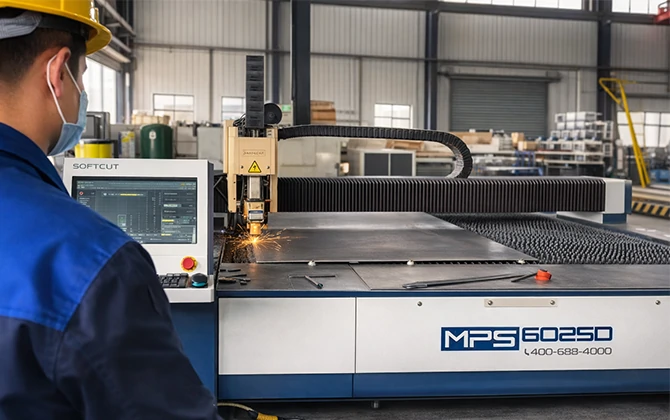

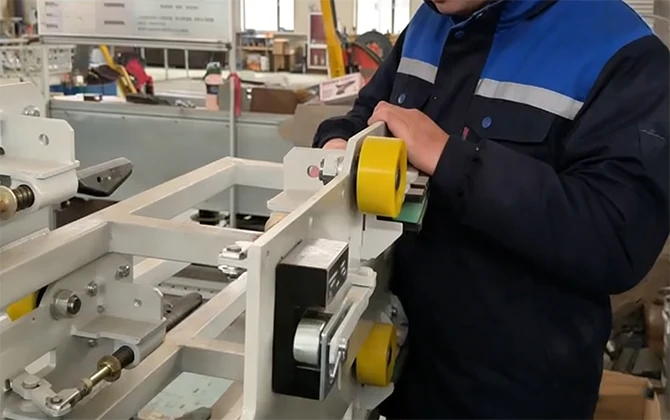

Anter is a professional Chinese manufacturer that produces various residential elevators.We have our own 10,000-square-meter modern factory. From sheet metal manufacturing to parts assembly, the process consists of three interconnected workshops, forming a strictly streamlined production process with fixed zones. To meet your various project needs, we can operate three production lines simultaneously. We also have 10 intermediate and senior engineers, 20 senior welders, and over 50 professional installers, enabling us to complete delivery tasks quickly and with high quality.
In addition, roped hydraulic elevators are one of our most popular products in recent years, as they are inexpensive while maintaining stable performance.We are determined not to sacrifice quality to lower prices; your satisfaction is always the fundamental goal of our products and services.
If you would like to learn more detailed information and professional solutions, please leave your contact information.

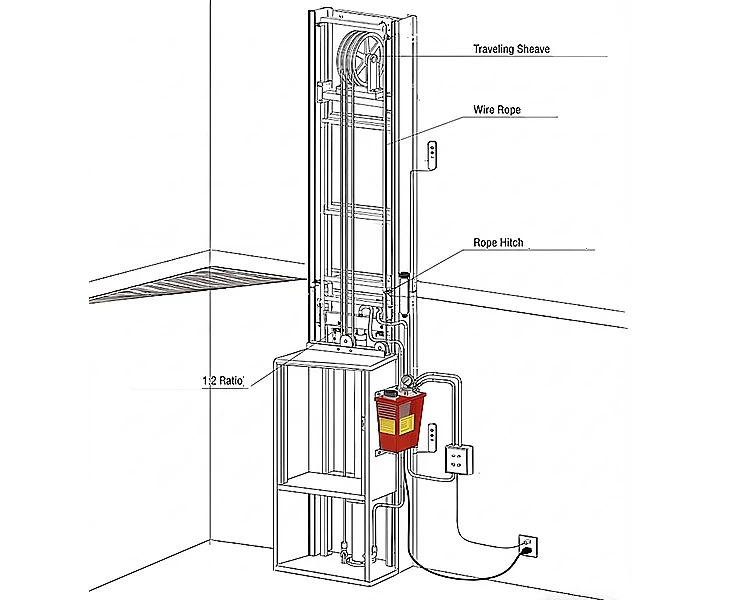

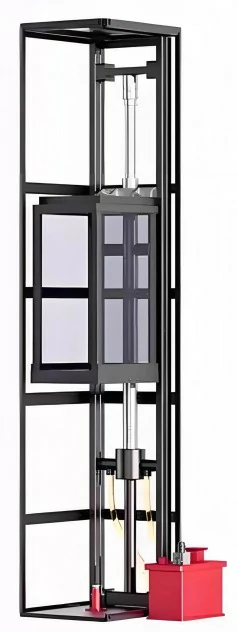

- Roped Hydraulic Elevator Diagram
A roped hydraulic elevator is an indirect-drive elevator that uses hydraulic power and a moving pulley multiplier mechanism.
When the elevator ascends, the motor drives the hydraulic pump, which pressurizes the oil in the tank and pumps it into the cylinder, thus pushing the piston in the cylinder upwards. This causes the movable pulley fixed to the top of the plunger and connected to the car to move upwards .
When the elevator descends, the hydraulic control valve assembly slowly opens, allowing the hydraulic oil to flow back to the oil tank under the weight of the car itself. The plunger retracts, the pulley descends, and the car descends along with it.
Our roped hydraulic elevators are highly adaptable and can be installed in various locations within a residence. If you are still concerned, we have professional staff to provide you with remote or on-site surveys, and to provide detailed and suitable elevator structure and installation solutions based on your specific situation.
Our roped hydraulic elevators start at approximately $3,500.The exact price depends on your floor height, the space you have reserved, the configuration you want, and your customization needs.If you would like an accurate price, please leave your contact information and we will send you a detailed quote shortly.
Yes. Our roped hydraulic elevators are very safe.We are equipped with a variety of safety devices, including emergency power supplies, automatic leveling layers in case of power failure, safety light curtains, safety clamps, speed limiters, etc., which can predict dangers from all aspects and provide solutions.
Roped Hydraulic Elevator: Pros and Cons
The roped hydraulic elevator is an improved version of the traditional hydraulic elevator, achieving normal vertical operation through the collaborative action of a hydraulic jack and a system of pulleys and ropes.The roped hydraulic elevator combines the advantages of traditional hydraulic elevators and sling-type traction elevators, making it suitable for use in multi-story residential buildings. If you are interested in roped hydraulic elevators but lack in-depth knowledge of them, you can read this article—it objectively and comprehensively outlines the advantages and disadvantages of this type of elevator.
Pros and Cons of Roped Hydraulic Elevator
|
Roped Hydraulic Elevator | Pros | Cons |
| Offers a higher lifting height than traditional hydraulic elevators | Not suitable for high-rise floors.
| |
| No pit required; no large-scale civil engineering work needed. | ||
| Inexpensive | Power consumption is higher than that of traction elevators.
| |
| High Security | ||
| The hydraulic cylinder experiences minimal wear and is resistant to oil leakage. | The price is slightly higher than that of traditional hydraulic elevators. | |
| Durable, low maintenance rate | ||
| Suitable for the renovation of old buildings. | The speed is relatively slow. | |
| Space-saving | Regular maintenance is required. | |
| Flexible Installation | Not suitable for commercial use or frequent use by multiple individuals. | |
| Low noise | The precision is slightly lower than that of traction elevators. | |
| Suitable for mid-to-low-rise floors | Not suitable for outdoor use in extremely cold environments. | |
| Simple structure, easy to install and maintain. | ||
| More stable operation | Regularly replace the hydraulic oil. |
Conclusion
Roped hydraulic elevators are an excellent choice for residential settings; they offer convenience, comfort, and stability, helping you save both time and physical energy. Moreover, their cost-effectiveness can even help you save a significant amount of money.
Currently, the home elevator market is highly competitive, offering you the opportunity to acquire higher-quality products at lower prices. As researchers with extensive expertise in the field of home elevators, we highly recommend Ante—a manufacturer boasting world-class technology and craftsmanship. Specializing in roped hydraulic elevators for over a decade, they enable you to acquire products of superior quality—comparable to those of renowned brands—without having to pay the associated brand premium.
Furthermore, Anter offers you a one-stop service covering everything from design, production, and transportation to installation. If you have any questions, we also offer free 24-hour online consultation.To ensure a timely response to your needs, please fill out the form on the right; a professional will contact you shortly.
