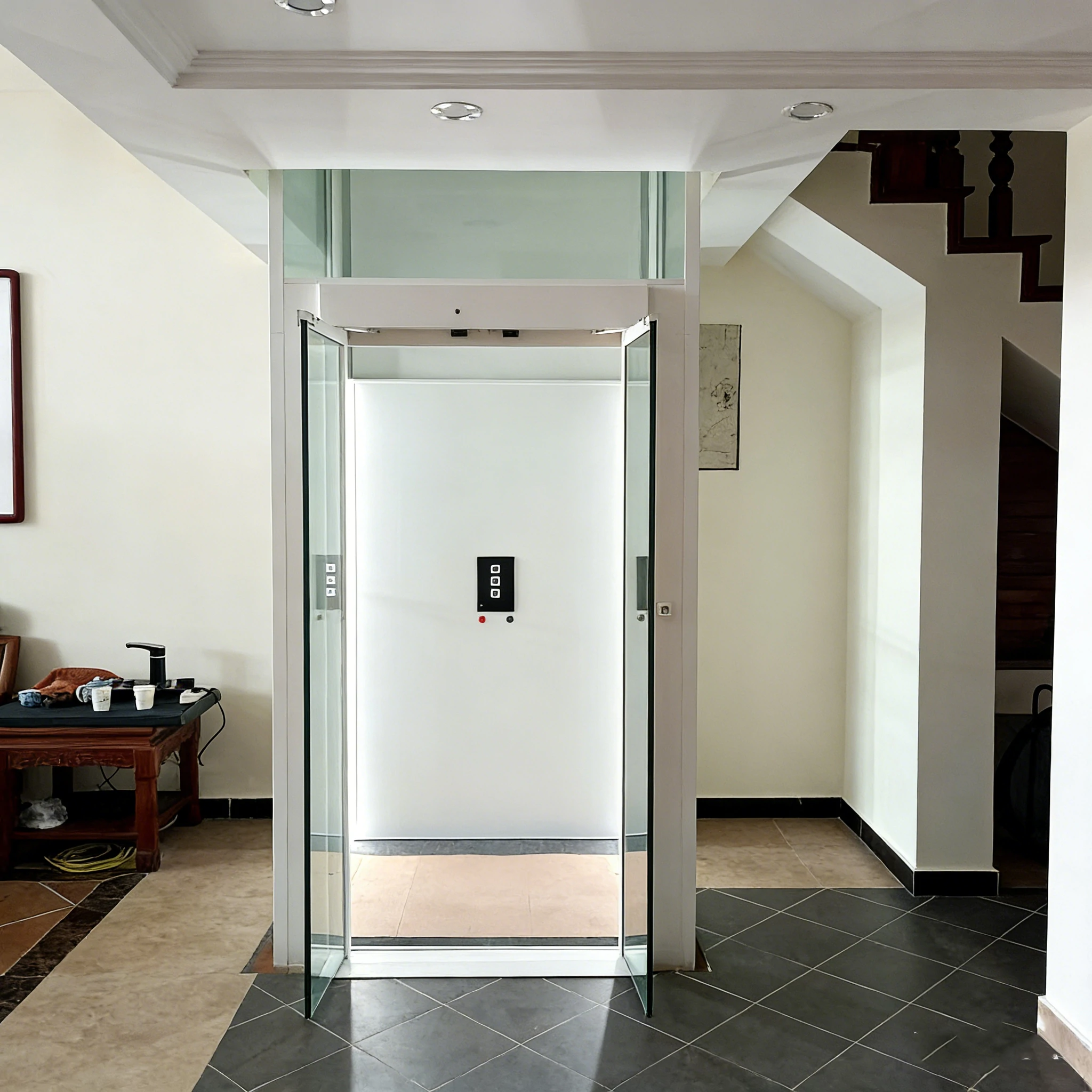

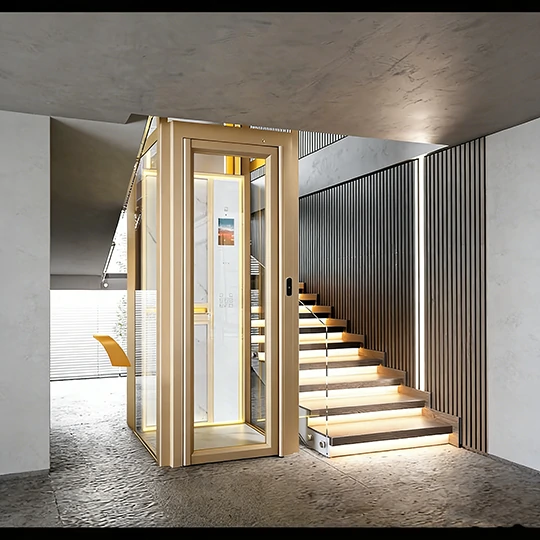

Your One Stop Split-level Elevator Manufacturer
- A 10,000-square-meter factory sells directly to you at affordable prices, no middleman markup.
- The core components of the product are selected from well-known domestic and international professional companies.
- Complete sheet metal production and assembly line, can large-volume products are possible.
- We specialize in custom-made split-level elevators, with various styles and patterns to choose from.
- Our professionals are available 24/7. Just leave your contact information and we’ll send you details and a quote immediately.
Anter- A Trustworthy Provider of Split-level Elevators
Anter is a company that has been deeply involved in the home elevator industry for 16 years. We integrate design, R&D, manufacturing, installation, sales, and after-sales service, possessing strong comprehensive capabilities to provide you with one-stop service. Our products cover a variety of mid-to-high-end home elevators, and we also provide freight elevators, platform lifts, and other products. As a professional manufacturer, our split-level elevators utilize the most advanced technology and components, are equipped with intelligent functions such as Bluetooth and voice control, and feature flexible and diverse designs, allowing us to tailor each elevator to your specific needs.
We guarantee it will be a very wise long-term investment for you.

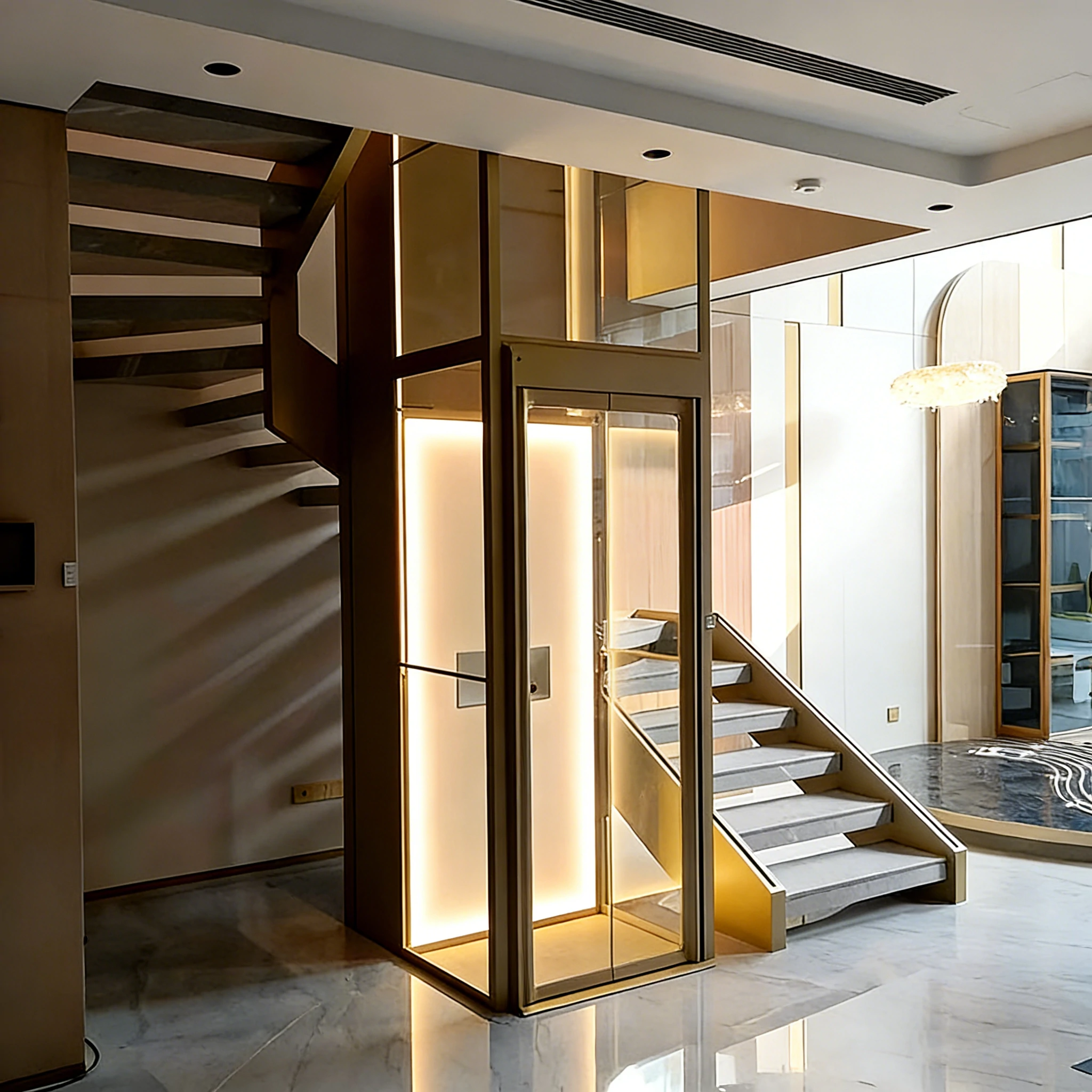

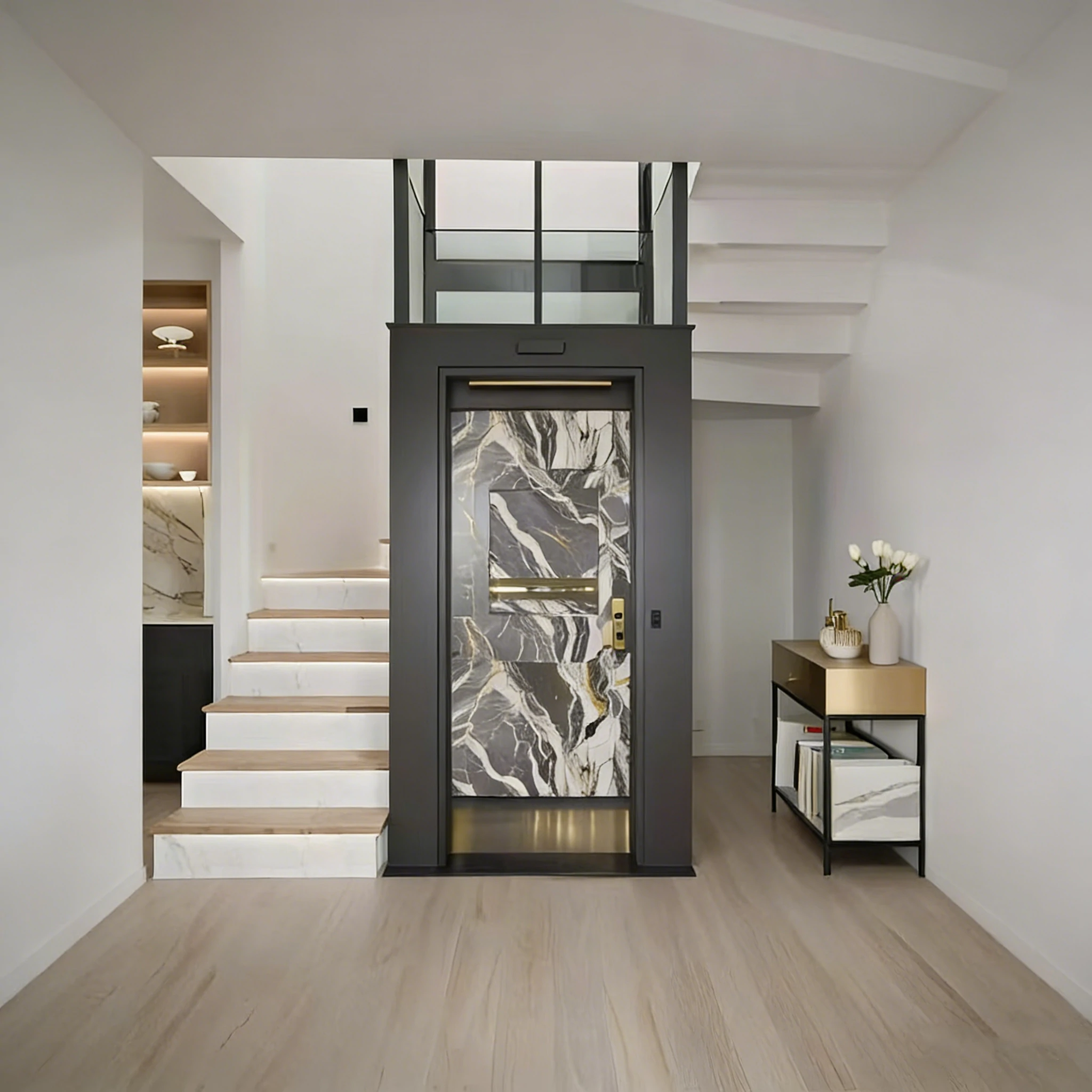

It occupies minimal floor space and accommodates only 1–2 people at a time, making it suitable for households specifically catering to the needs of the elderly.

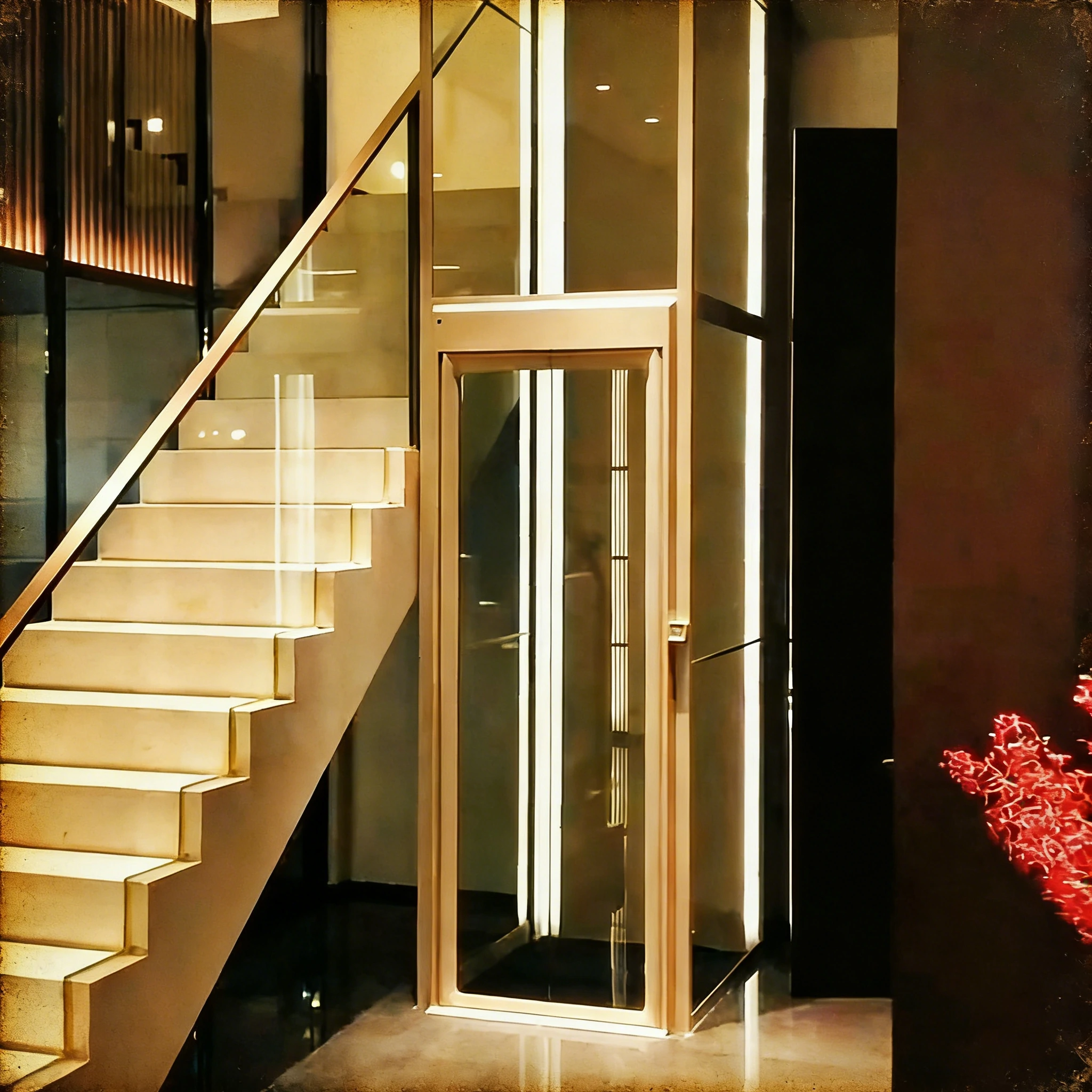

The elevator has its own metal frame, which can support the weight of the elevator during operation, and can perfectly replace the shaft.

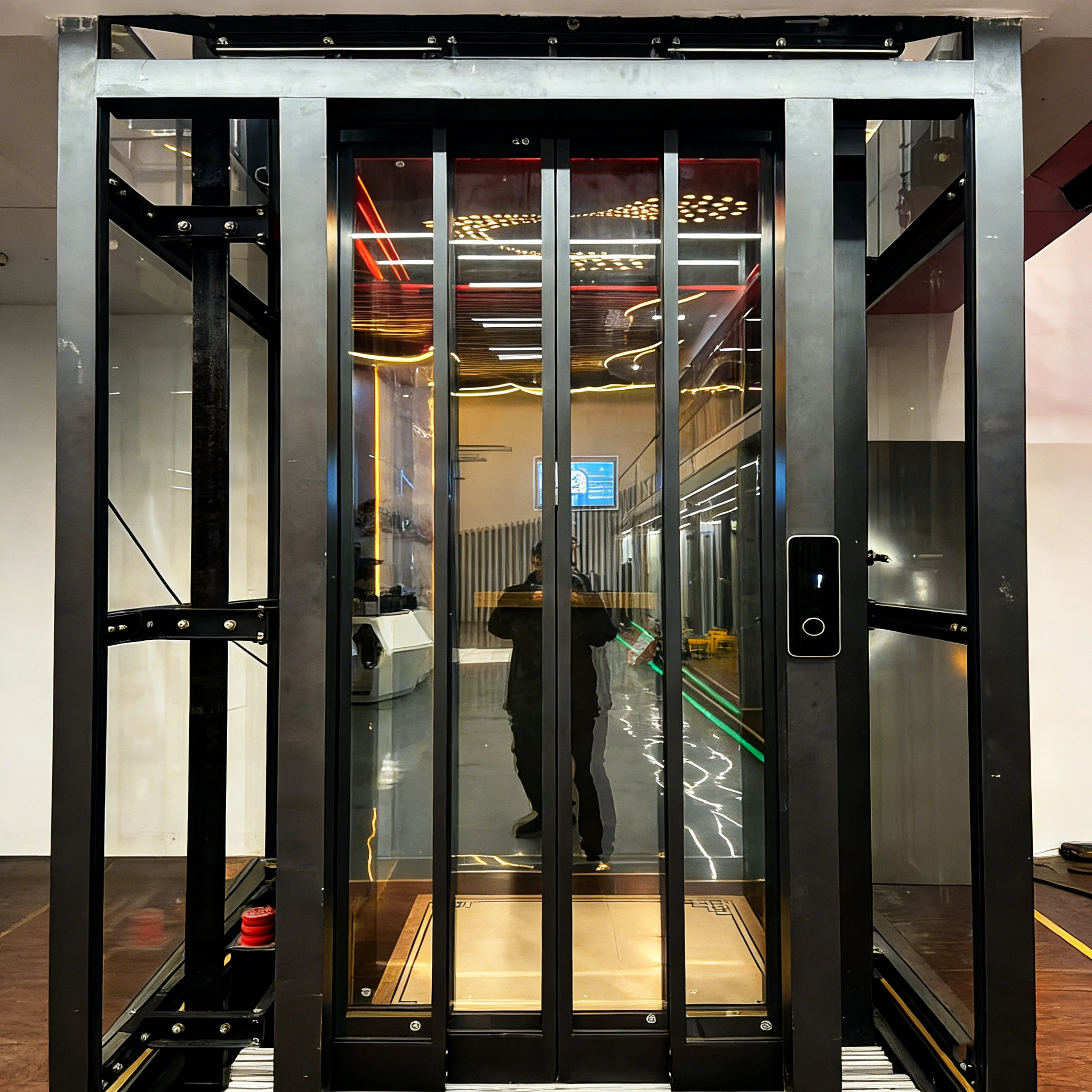

If you plan to install a shaft in advance, this model is recommended as it is more robust and better suits the shaft space design.

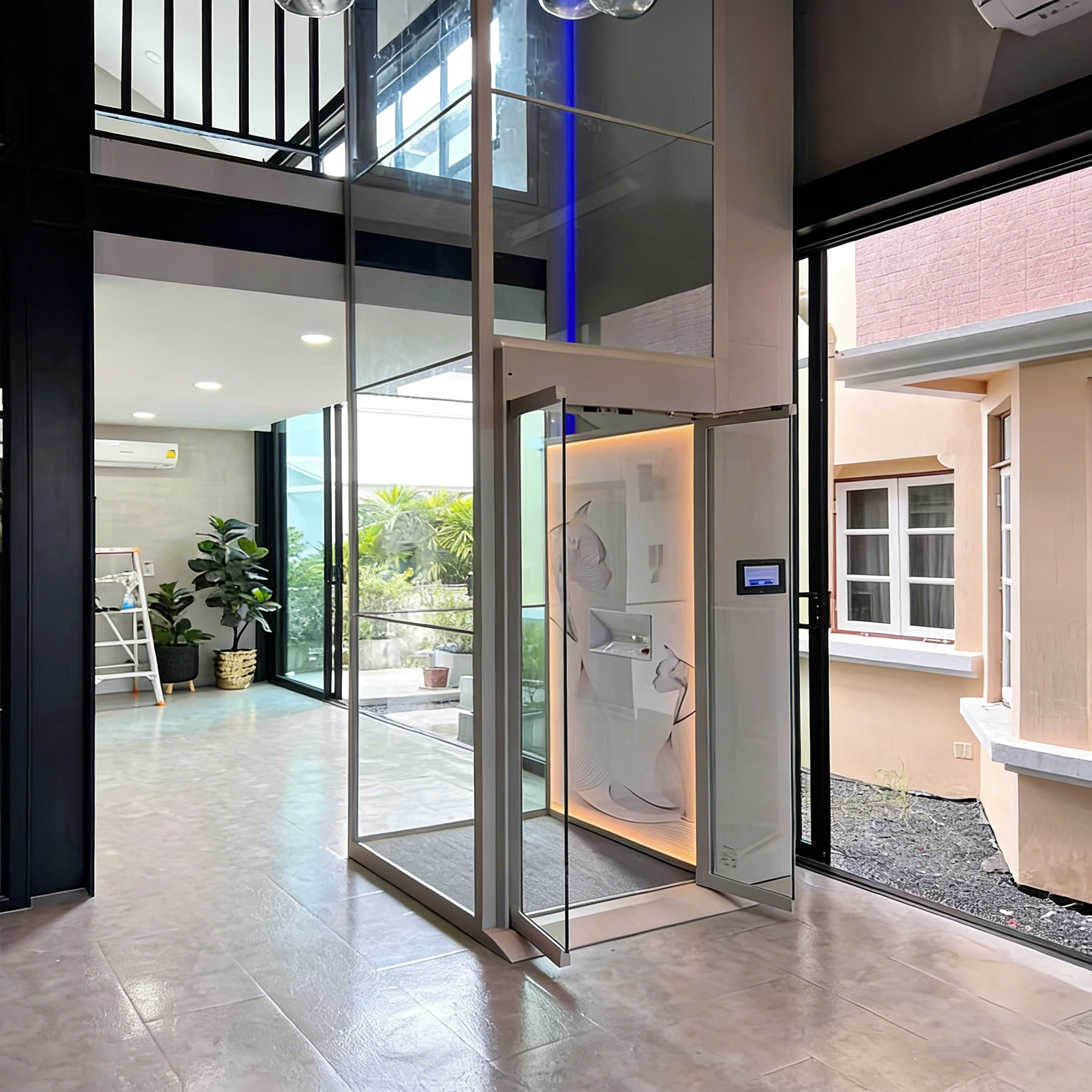

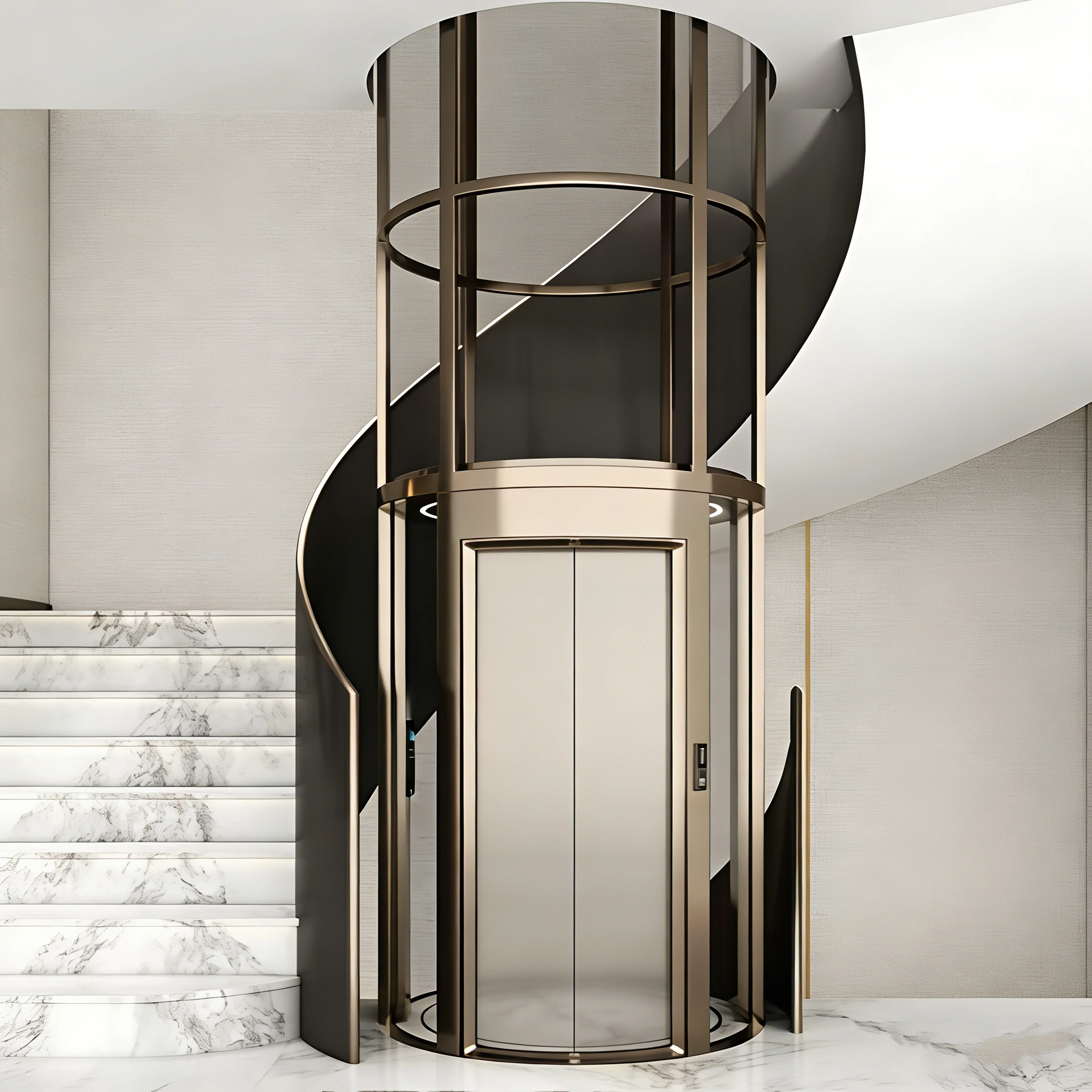

The panoramic design, with its 360° glass surround, is the most aesthetically pleasing and grand choice, allowing you to enjoy a visual feast.
Why Anter is A Better Choice for Your Project
Our Slit-level elevators are a worthwhile investment, offering numerous advantages to solve your daily problems and providing peace of mind when using them.
Our elevators are suitable for people with mobility impairments, and there is no jerking or hesitation when starting or stopping.
We can equip the elevator with fingerprint, password, card unlocking and other methods to prevent unauthorized use.
All parts of our elevators can be customized, and we provide drawings and installation plans free of charge.
It can carry people or objects weighing up to 630 kg, making it easy to move items.
No pit or shaft is needed, and the alteration to the house structure is minimal.
It can be installed in a space as small as one square meter, yet the interior remains comfortable.
We mainly focused on a touch of luxury, creating elevators that match the style of the home.
Currently, the flooring in the industry is affordable and has good elevator performance.

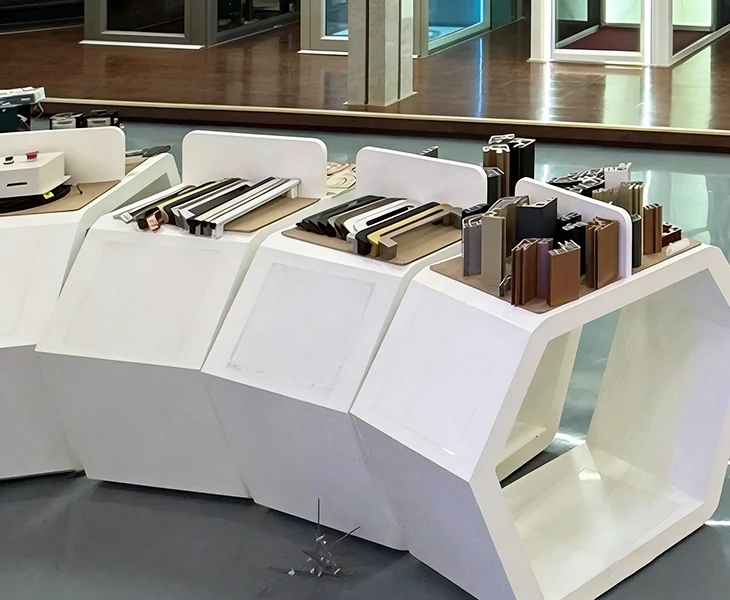

Comprehensive Customization Capabilities
Beyond their practical value, staggered-floor elevators also enhance the aesthetics of your home. To meet the specific needs of your diverse home styles and installation locations, we offer comprehensive customization services, creating unique home elevators just for you. Our customization options include: Materials: glass, stainless steel, heavy-duty aluminum, and light-duty aluminum; Colors: a wide range of colors from understated luxury to retro styles; Shapes: round, square, tubular, and capsule-shaped – all customizable; Interior finishes: several options from lighting to engraved patterns. We can also quickly generate multiple solutions based on your ideas, ensuring you receive the most satisfactory product.

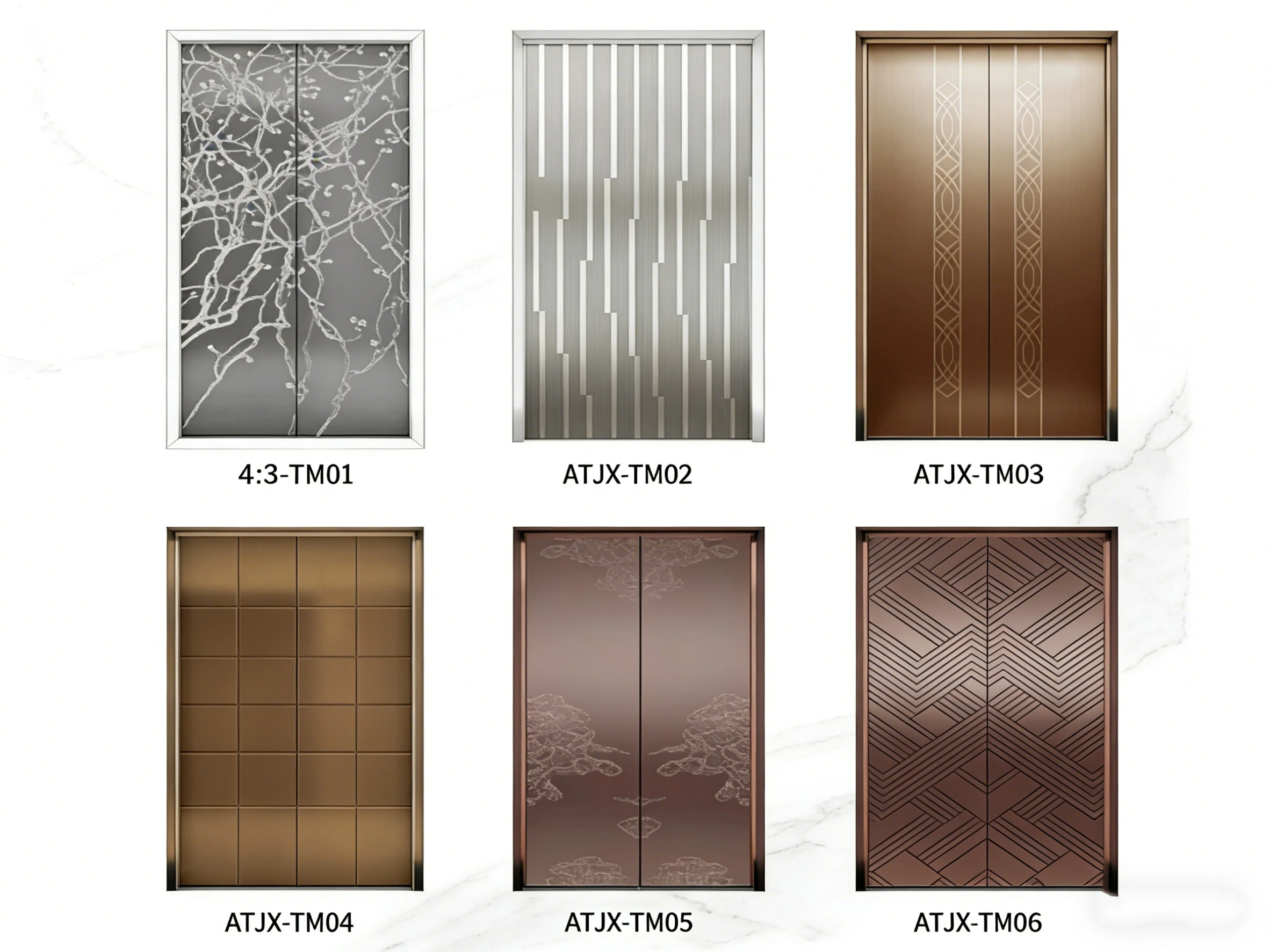

Highly Convenient Door System Design
To better suit the design of split-level residences and facilitate easier access, we can customize double-sided split-level elevators. These through-door elevators are suitable for installation on balconies or in narrow spaces on a particular floor, connecting the yard with the interior of the house and the interior spaces of each floor. Furthermore, we employ a threshold-free design, allowing the elevator door frame to be almost flush with the ground, and the narrow door frames on both sides facilitate the free movement of strollers or wheelchairs, while also making it easy to move items between floors. Split-level elevators are a highly convenient option suitable for all types of people.

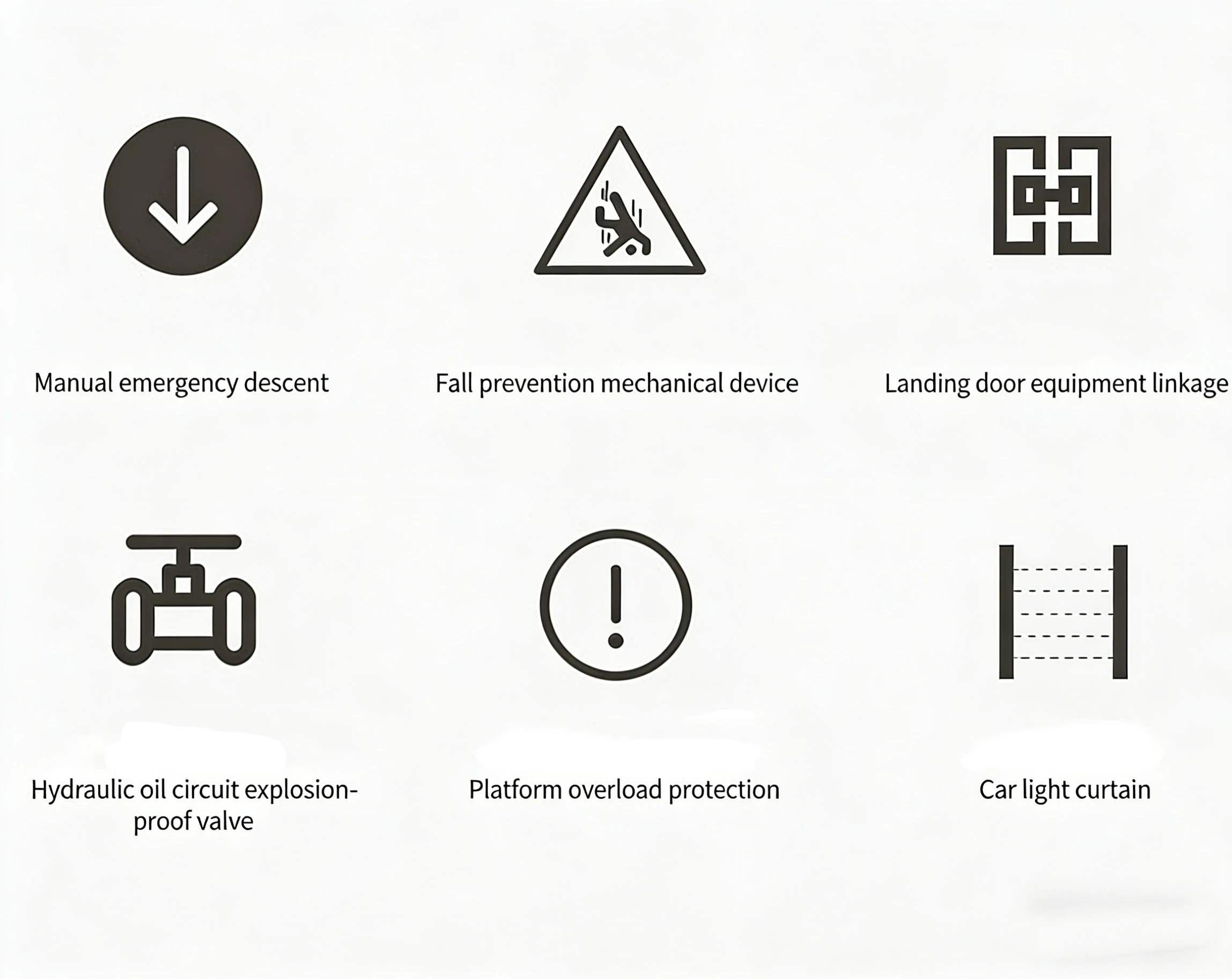

High Security in All Aspects
Safety has always been our strongest point regarding staggered-floor elevators. We always prioritize our customers’ safety. Our elevators are equipped with emergency power supplies and automatic leveling systems to eliminate the risk of being trapped in the elevator or in mid-air during a sudden power outage. Additionally, fall arrestors can forcefully stop the car on the tracks. Furthermore, we have overspeed limiters, anti-pinch safety touch panels, and anti-hand-pinch light curtain sensors, ensuring the safety of you and your family from every angle. Our elevators have been tested and proven by time and our customers, boasting a low failure rate and high safety.

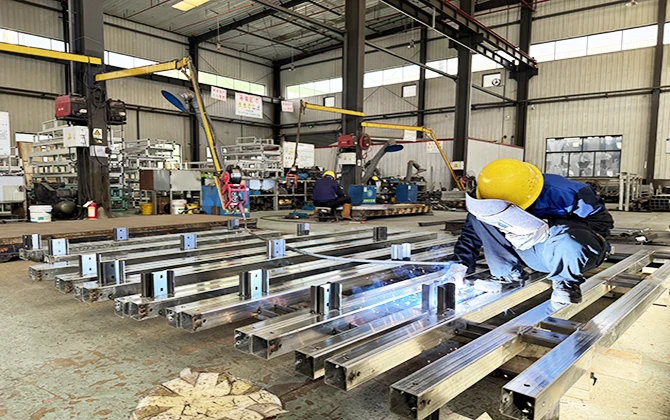

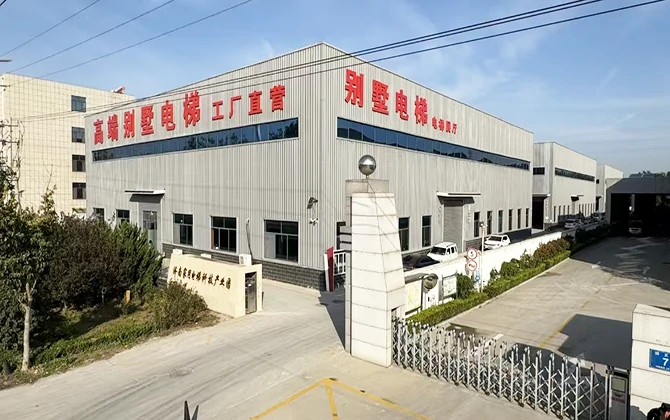

Professional Split-level Elevator Company in China
Anter has been operating in the home and villa elevator industry for fifteen years, with products covering various application scenarios. Our staggered-floor elevators are among our current best-selling models. We own a 10,000-square-meter factory, and from purchasing steel to our independent production lines for laser cutting, bending, painting, and final assembly, every step is strictly carried out according to standards and undergoes multiple quality inspections, including safety tests, strength tests, and operational performance tests. We can provide you with a certificate of conformity upon delivery.
In addition, we have built a 1,500-square-meter elevator showroom, offering free demonstrations and selections of over 15 of the most common elevator models on the market. Therefore, choosing Anter gives you the most authentic and transparent experience. Contact us now! More details and pricing will be sent to you immediately!
Multiple Solutions for Split-level Elevators

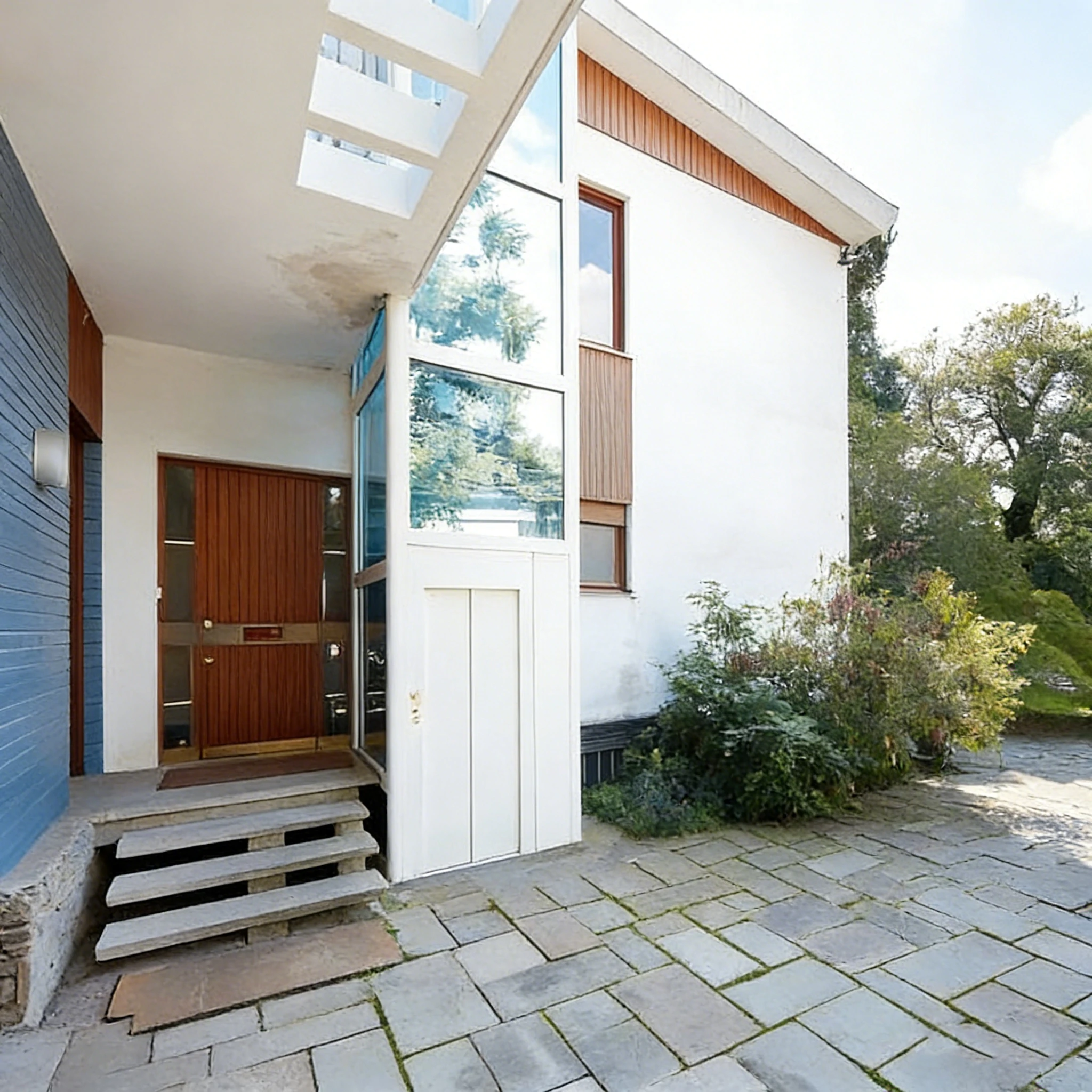

Our split-level elevators are suitable for older buildings, will not damage the original building structure, do not require a shaft, and are securely installed for long-term use.
Our elevators can be installed in sizes ranging from 0.8 to 1.2 meters in length and width, with a minimum size of less than 1 square meter. There are no restrictions on the installation location, and no pit is required.
Our split-level elevators are equipped with one-button operation, making operation simple with just a press of a button. Furthermore, to facilitate use by the elderly and disabled, our elevators operate at a smoother speed and with greater stability.

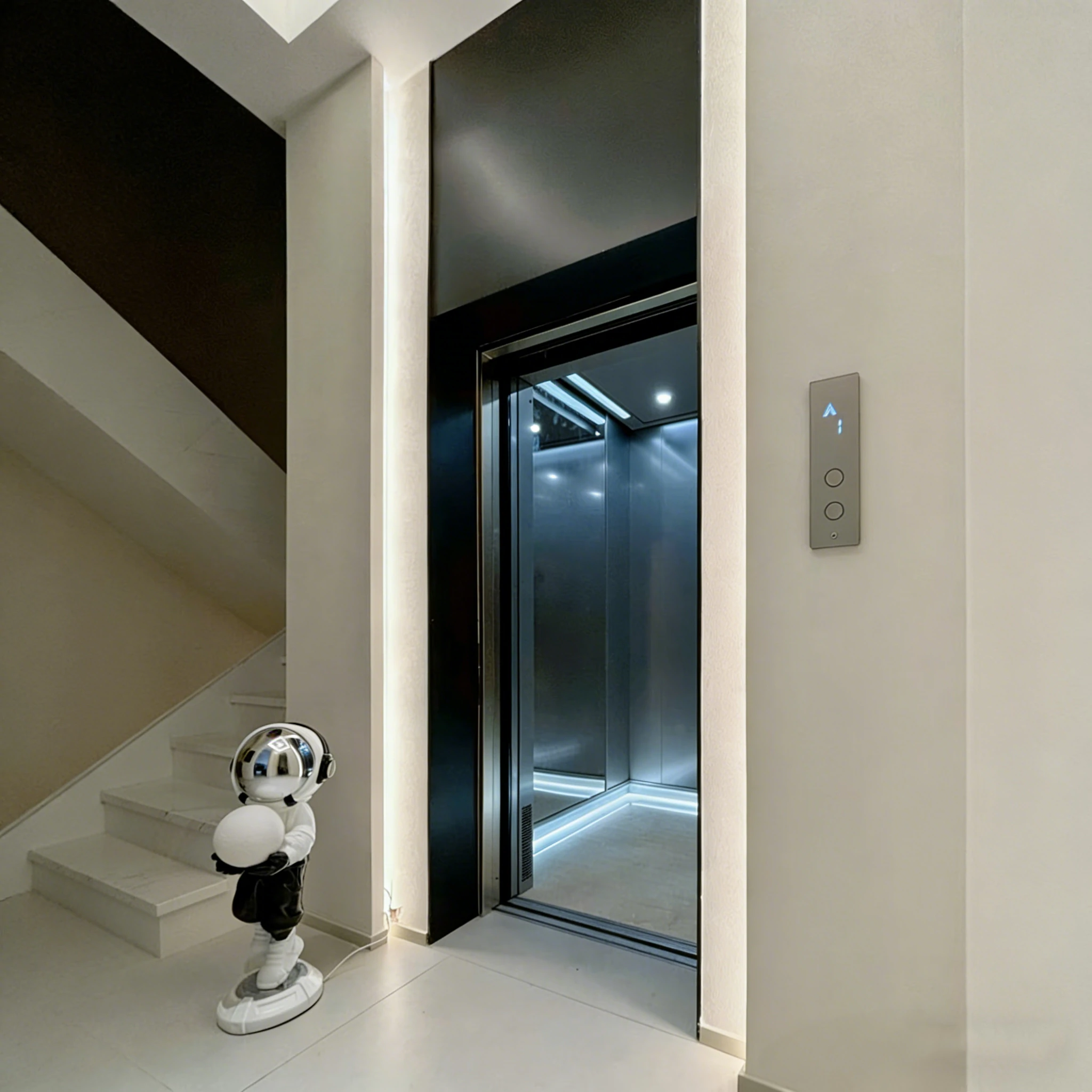

We have split-level elevators specifically designed for basements. The elevators are made of more robust materials, are corrosion-resistant and moisture-resistant, and have moisture-proof treatment for the electrical system, ensuring convenient and safe use and solving the hassle of moving heavy objects.

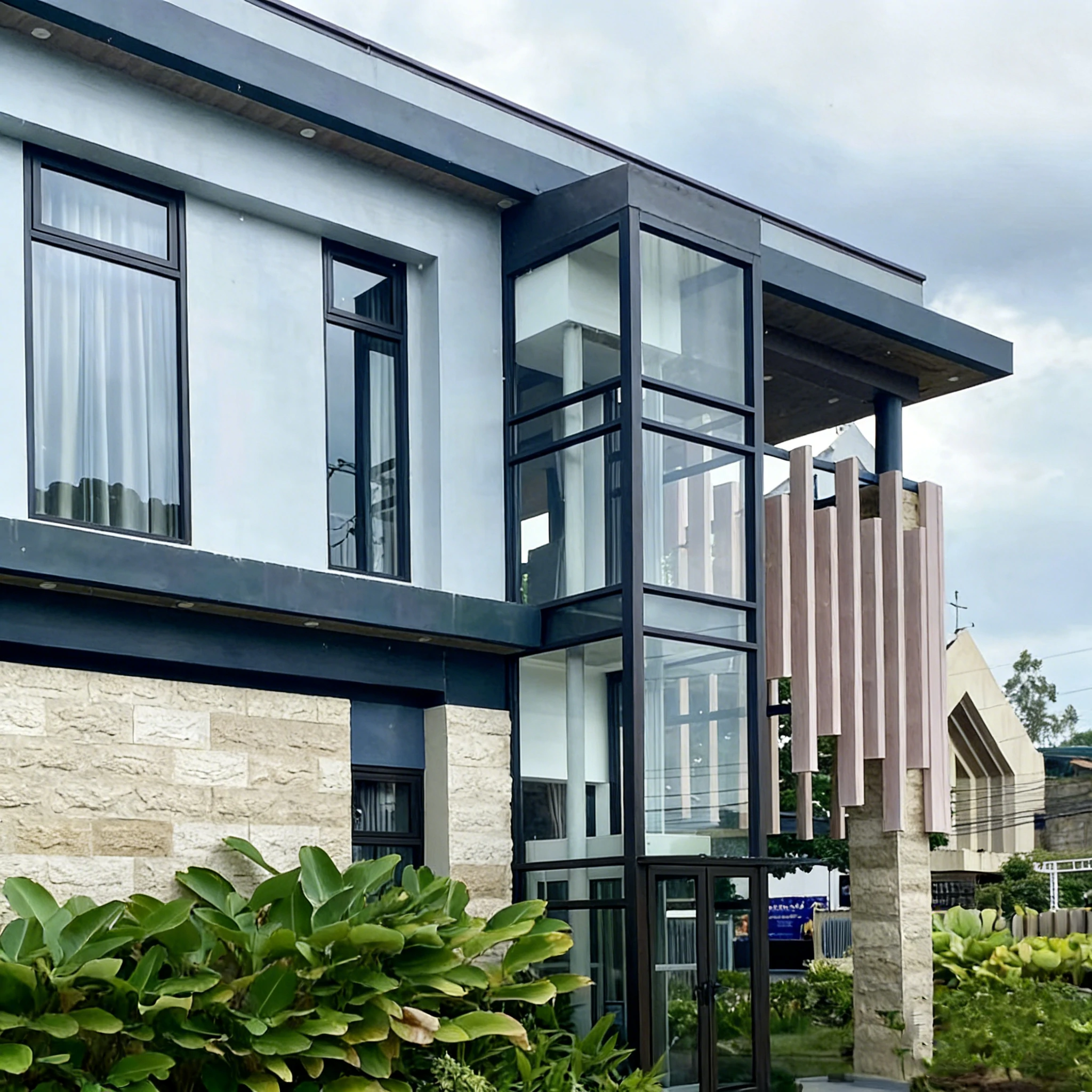

We can install it at the connection between the outdoors and indoors, such as on a balcony. The intelligent front and rear door design ensures safe entry and exit and saves you time when leaving home.

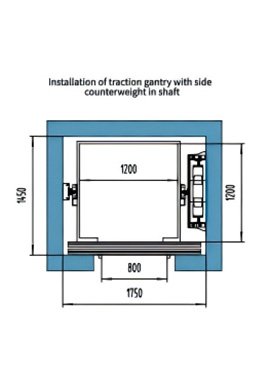

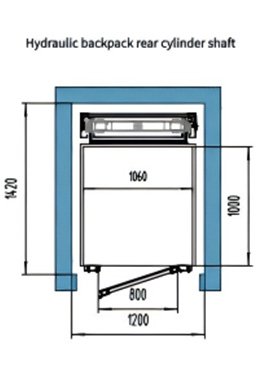

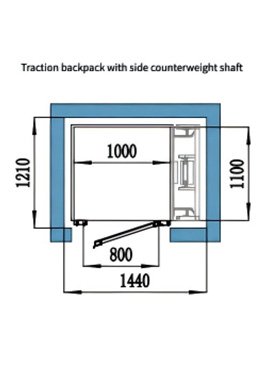

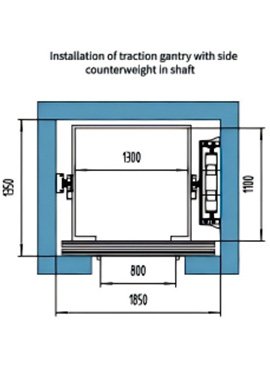

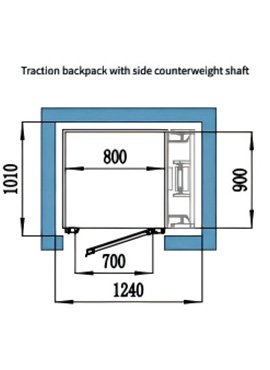

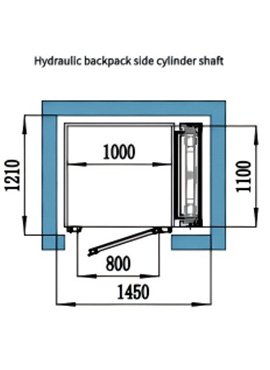

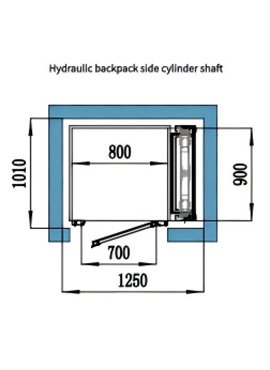

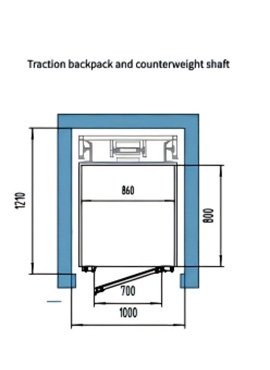

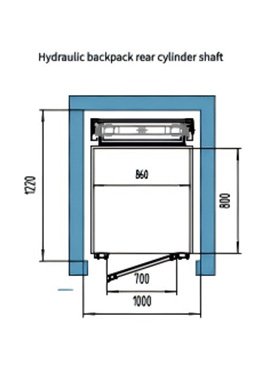

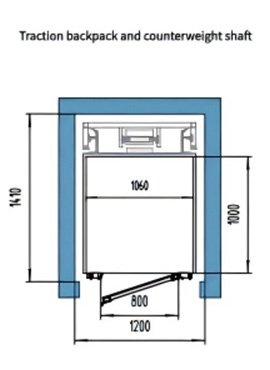

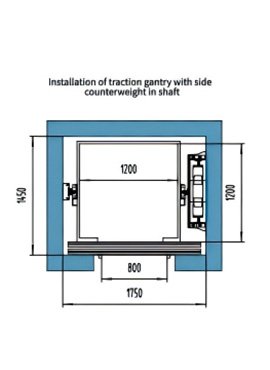

- Drawings

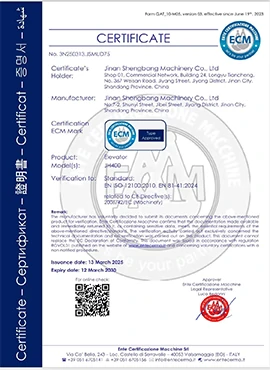

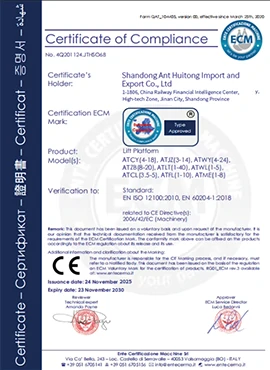

- Certification

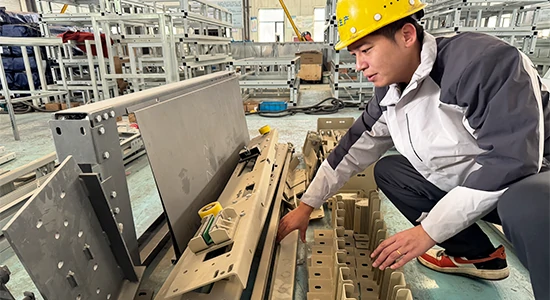

- Package &Shipping
Testimonials
It was exactly the split-level elevator I wanted, the service was excellent, and the staff member who communicated with me was very professional.
Emily DavisThe production period was relatively short, the delivery was fast, and the packaging was very sturdy. The split-level elevator I received was completely undamaged.
Daniel WilsonI compared many split-level elevator companies and found this one to have the same configuration but a very affordable price, which perfectly met my expectations.
Mark Lewis

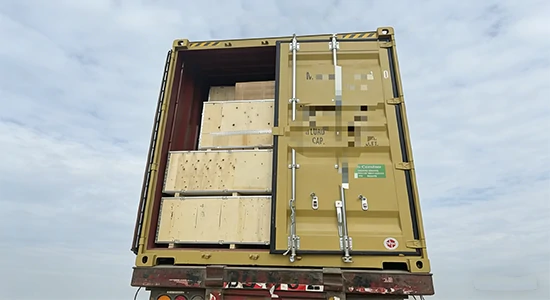

Production will begin after the prepayment is made, with a production cycle of approximately 25 days. For standard orders, the time will be within 15 days. Once production is complete, the goods will be shipped to Qingdao Port. The specific shipping schedule will be determined by the freight forwarding company based on the destination port.
We cannot provide a specific price for staggered-floor elevators. We need to determine the price based on your floor level, available space, and customized configuration. However, our elevators typically range from $3,000 to $7,000, so you don’t need to worry about the price being too high.
Our split-level elevators only stop on the main floors, but the staggered height is not much different from the height of the regular floors. Floor doors can also be installed as stopping points.
Installation typically takes around 7 days, but the exact time depends on the type of elevator and the height of the floor. Simple installations may take 3-4 days, while taller floors and more complex structures may take around 10 days.
The Step of Adding a Split-level Elevator to Your Home
A split-level elevator is a barrier-free solution specifically designed for residences where each floor has a different height. Installing an elevator in your home can improve your and your family’s mobility, save time and energy, and increase the value of your property, making it a high-return investment. If you’re considering owning a split-level elevator, this article provides a detailed overview of all aspects to help you find the answers you’re looking for.
Understanding the Layout of Your Split-Level Home
First, when inquiring about split-level elevators from vendors, you need to have a basic understanding of your residence. This includes the floor height of each floor and the height difference between floors. Additionally, you need to know the location of each staircase, the space around each staircase, and whether it’s cramped. You also need to understand whether there are local laws and regulations regarding elevator installation in residential buildings, as well as construction standards, and whether there are any structural limitations in your building to avoid damage during construction.
Common Installation locations
While most split-level elevators are installed near staircases, this doesn’t mean they can only be installed there. Most elevator companies don’t restrict installation locations; as long as suitable space is provided, they can be installed. Some companies even allow installation in residences without shafts or pits. Furthermore, split-level elevators also have outdoor installation options, such as on balconies, at basement exits, and in courtyard corners. In short, both indoor and outdoor installation solutions for split-level elevators are currently very mature.
Getting Professional Design and Approval
Contact a home elevator company and tell them your needs, as well as your reserved and available space. Professionals will then customize your home elevator. If you have the space to build a shaft or need to drill holes between floors, you can contact professionals (such as architects) to assess your property and obtain architectural drawings and construction plans. Additionally, although split-level elevators are considered light construction (if you don’t need a shaft or pit), in some areas with strict regulations, a corresponding construction permit is still required. Therefore, you need to understand and prepare for this in advance.
Preparing the Site for Installation
Before the formal installation, some preparatory work is required. For split-level elevators with a shaft, it’s necessary to consult with the elevator company and construction personnel to build a shaft of suitable dimensions and rationally plan the installation positions of the elevator door openings and landing doors, as well as the elevator structural fixing points. For elevators with a pit, a pit needs to be prepared, generally between 200-500cm, although some elevators can adopt a shallower pit design. Regardless of the type of split-level elevator, it is essential to ensure that the surrounding environment is clean, and that the walls are suitable for construction and have a load-bearing capacity commensurate with the elevator’s weight.
Split-level Elevator Installation Process
The specific installation steps will be provided by professionals after you select your elevator and installation team. They will send you detailed information or provide an on-site demonstration. Here, we will only give you a brief explanation of the elevator installation process.
Install Guide Rails
Before installing the guide rails, confirm the location of each point. Then place the guide rails along the points, keeping them perpendicular to the horizontal plane. Ensure high precision in the connection between the two guide rail sections, minimizing error distance.
Install Driver System
Split-floor elevators are most commonly hydraulically driven or traction-driven. Professionals will install them on either steel cables or steel wire ropes, depending on the type of elevator you choose.
Install Carbin
The car is the main part of an elevator. It consists of the car frame and the car body. Hydraulic elevators require the car frame to be lifted from the bottom to concentrate the force at the bottom, while traction elevators are suspended upwards, with the force applied in the opposite direction. Both require alignment with the guide rails. The car is then secured to the car frame.。
Door System Installation
When installing the landing door, ensure that the error between it and the car door is less than 3mm. In addition, when installing the door leaf, ensure that there are no obvious gaps between it and the door frame.
Electrical System Installation and Commissioning
First, the installer will place the electrical cabinet in the shaft or near the elevator. Then, multiple cables will be laid for the elevator’s control and signal connections, and the cable surfaces will be treated to prevent wear. Third, the elevator control panel, lighting system, and safety electrical systems, including safety light curtains and automatic leveling systems, will be installed and connected to the control system. Finally, a test will be conducted by connecting the power supply and clicking the control panel to check if the elevator responds accordingly and if the safety systems function properly during operation.
Overall Test
From elevator operation and load capacity to all safety devices, each component is tested individually to ensure proper installation and stable operation of the elevator.
Maintenance and Long-Term Care
Maintenance of split-level elevators after installation can be categorized into routine maintenance and professional maintenance. Routine maintenance is relatively simple, including clearing obstructions around the elevator, regularly cleaning the elevator surface to prevent dust accumulation, and immediately seeking professional assistance if any abnormalities are found. Professional maintenance is performed once a year or every six months, mainly by the elevator company or a specialized elevator maintenance company to conduct a detailed inspection of the elevator’s components and functions.
Conclusion
Finally, a split-level elevator is a product that will benefit your family in the long run. Although it’s a significant expense compared to other household appliances, its practicality, aesthetics, future suitability for retirement, and potential for appreciation make it an excellent value. Furthermore, we sincerely recommend Anter Elevators, which offers a comprehensive service from design and production to installation. Their prices are affordable, the elevators are of guaranteed quality and will ensure safe use for a long time, and they offer full customization, allowing you to create an elevator design just for you.
