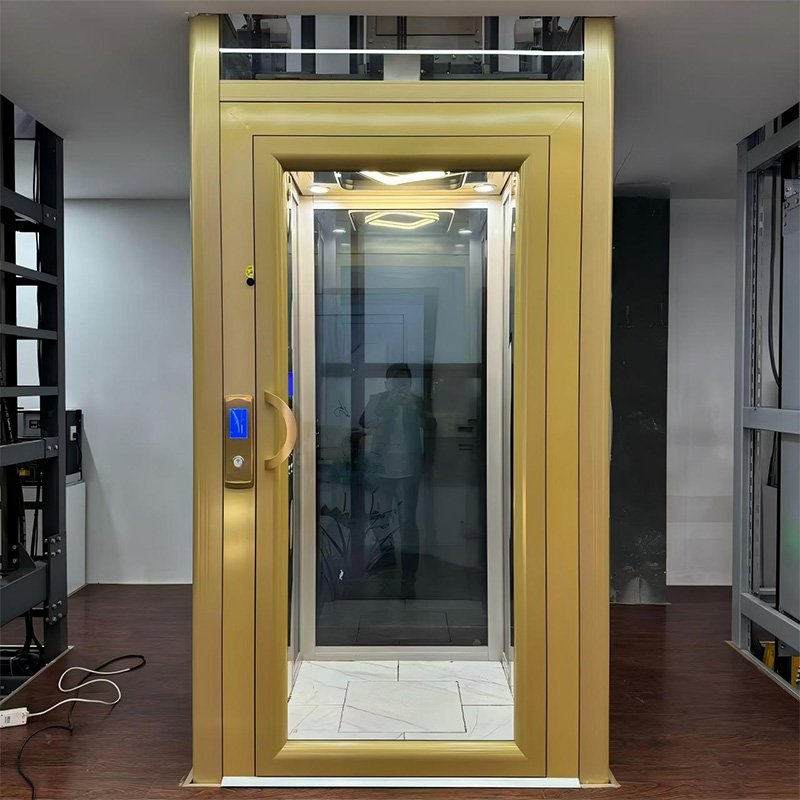

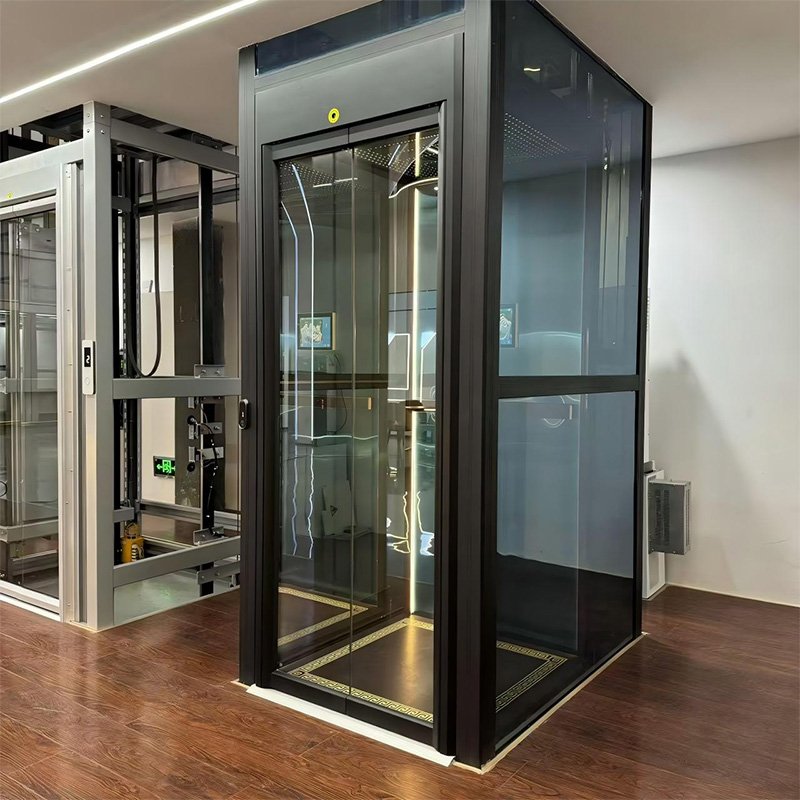

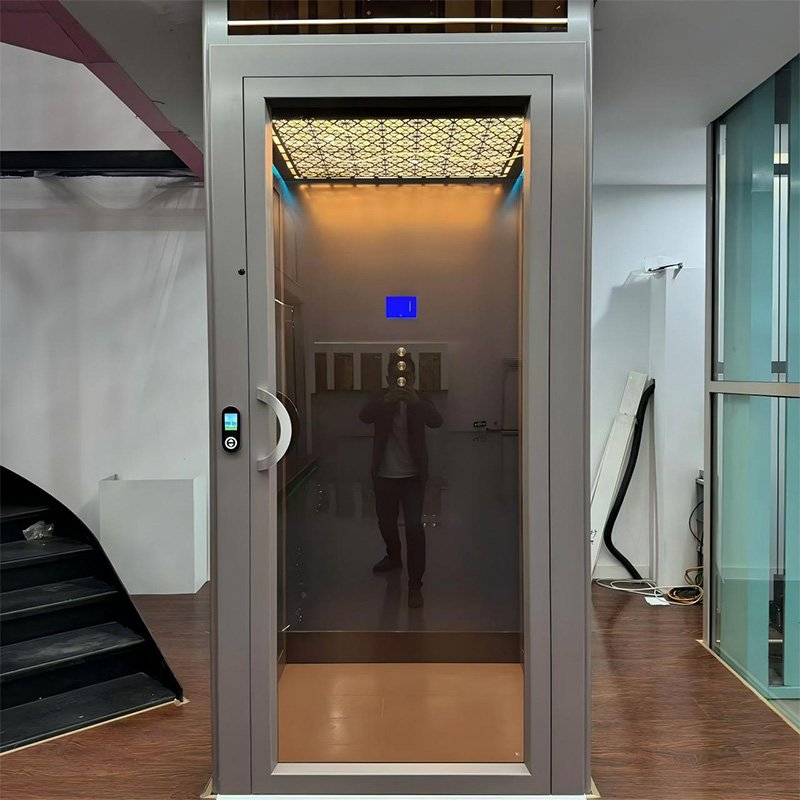

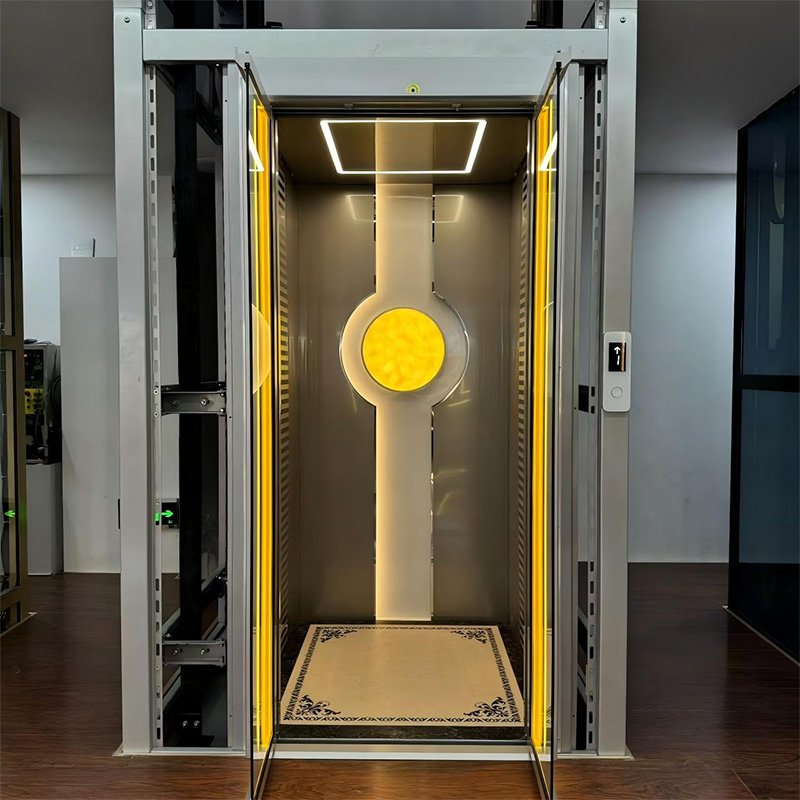

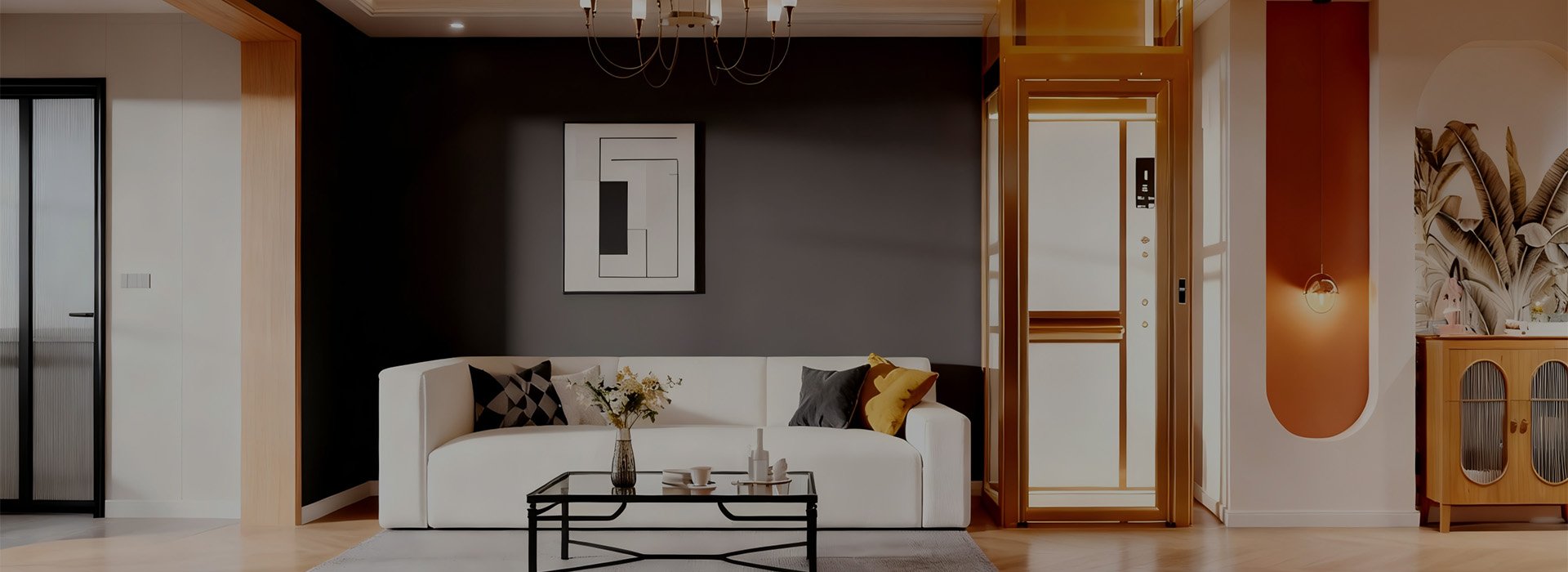

Anter, Home Traction Elevator Leading Manufacturer
- Power 1.2 kW, energy-saving and environmentally friendly
- No pit or server room required; can be installed indoors or outdoors.
- It is equipped with a safety device that automatically adjusts its level in the event of a power outage.
- Electric gates offer a convenient and simple way to enter and exit, requiring only one button to open.
- It operates without noise, gears, or oil, and is powered by a permanent magnet synchronous motor.

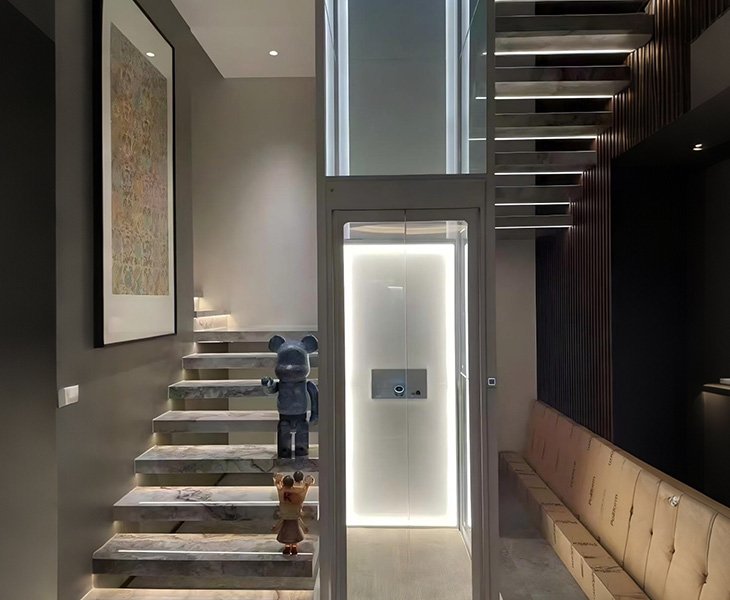

Flexible Installation
This equipment uses a freestanding steel frame shaft, eliminating the need for walls, shafts, or machine room pits, thus minimizing space requirements. The minimum installation space is only 1 meter, allowing for installation in stairwells, corners, and other indoor and outdoor locations. On-site installation services are provided by us.
Customizable Appearance
Elevator doors can be opened automatically or manually. Automatic doors can be center-opening or side-opening stainless steel doors, or outward-opening glass doors. Manual doors can be semi-automatic, featuring aluminum alloy frames, tempered transparent or frosted glass panels, and equipped with door closers, automatic closing functions, and power-off functions upon opening. The external shaft can be fitted with galvanized steel or aluminum alloy frames, and more than ten frame color options are available to perfectly blend into your home décor.We can also provide customized sizes and appearance services based on specific customer needs.
What is a traction elevator?
Traction elevators are one of the most widely used types of elevators today. Compared to hydraulic elevators, traction elevators work by using a traction machine to drive steel ropes or belts and utilize counterweights to assist the vertical movement of the elevator car, resulting in a longer service life and higher safety. Currently, traction passenger elevators are the most widely used type of elevator globally. Their core working principle is based on the friction transmission mechanism in physics, and they mainly consist of a traction machine, control system, traction sheave, elevator car, counterweight, steel ropes, guide rails, and safety devices.
The Types of The Traction Elevator
Overhead Traction Elevator is a high-quality, easy-to-maintain, and smoothly operating device that offers convenient transportation, making it the best choice for home use.

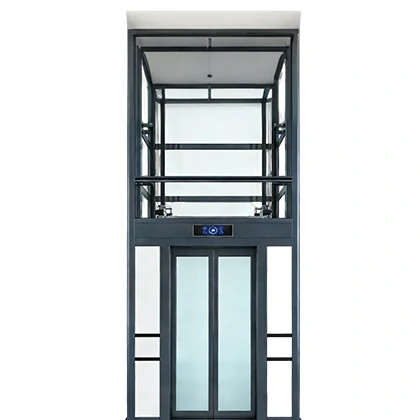

Gearless traction elevators are the preferred choice for luxury residences.Quiet, safe, energy-efficient, and fully customizable. Delivering an exceptional elevator experience for you.

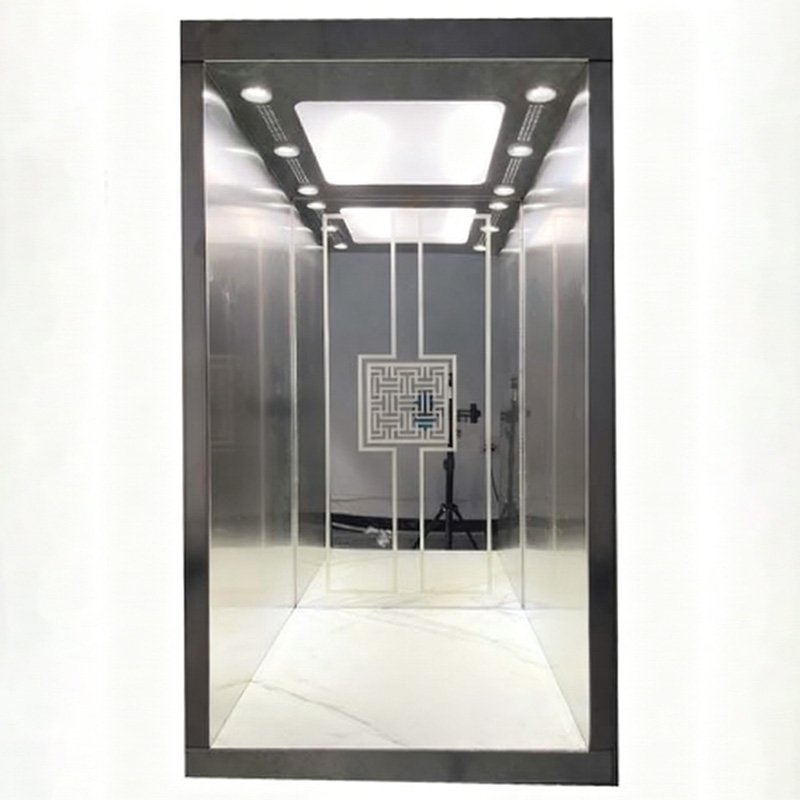

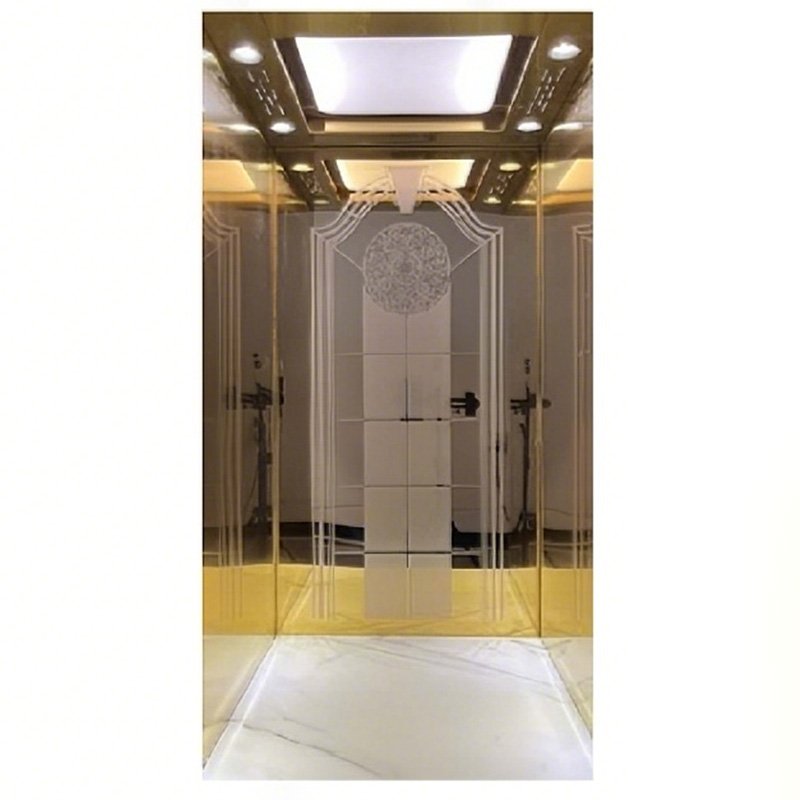

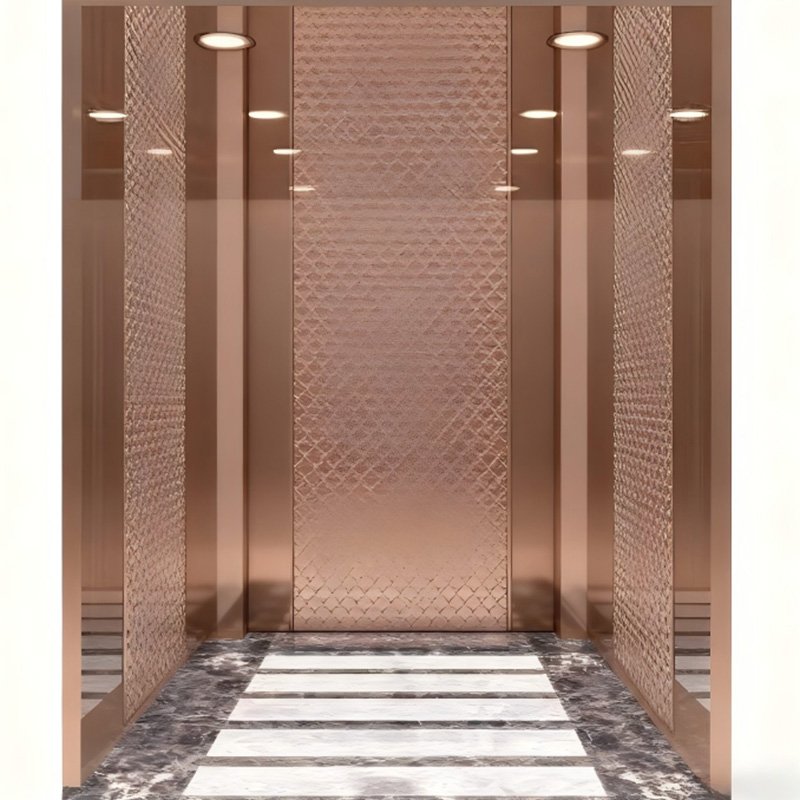

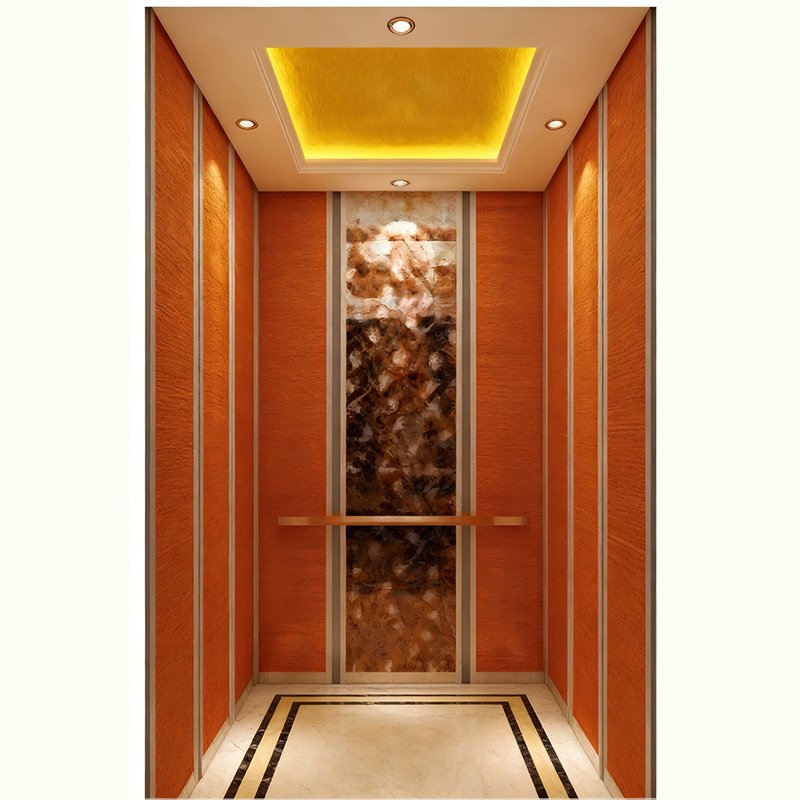

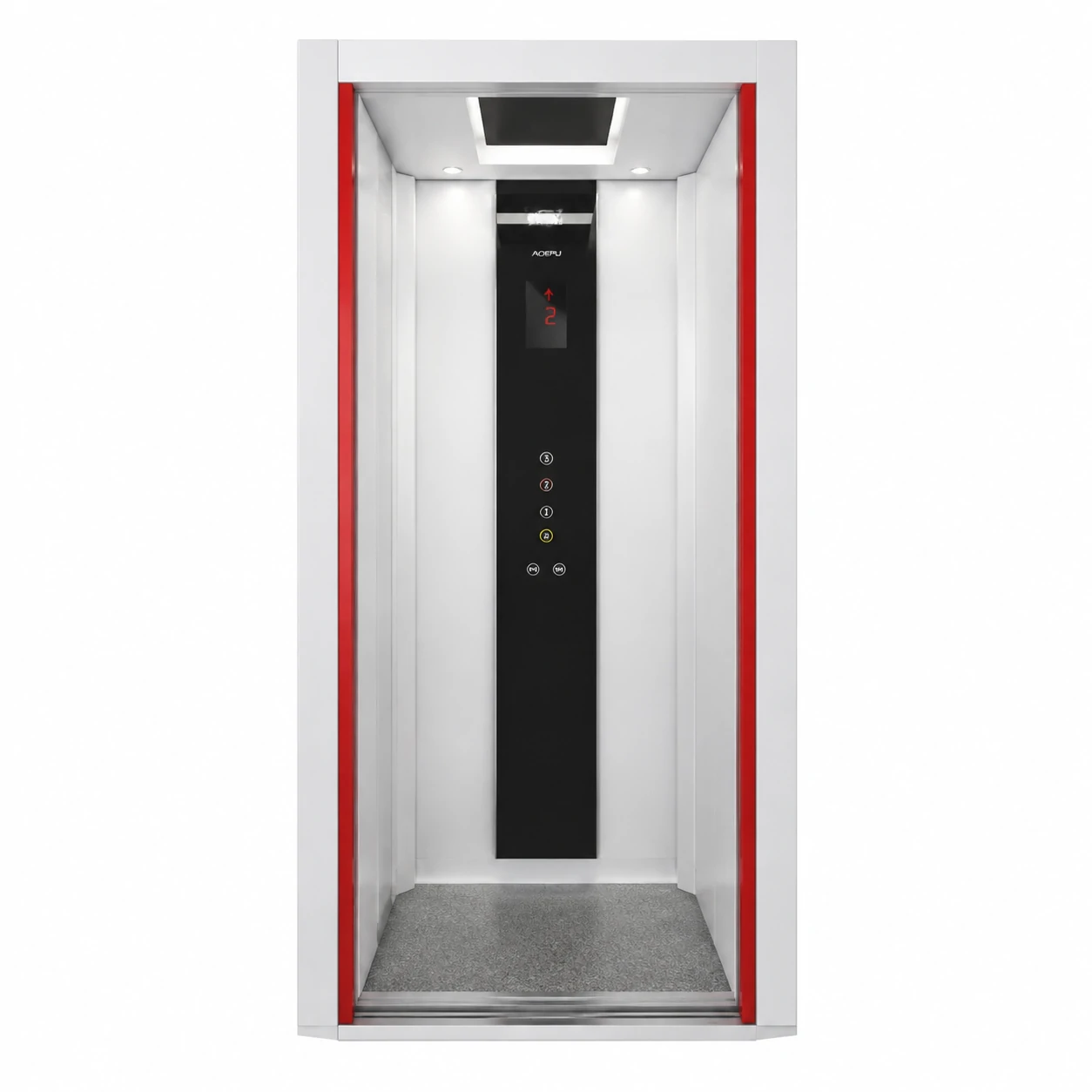

Car Interior Decoration
Traction elevator cars offer a variety of interior design styles, including stainless steel and panoramic glass. Stainless steel cars are available with either a mirror or brushed finish, while panoramic glass cars offer a choice of clear or tinted glass. Below are some of the most popular styles among customers.
Elevator Door Handle

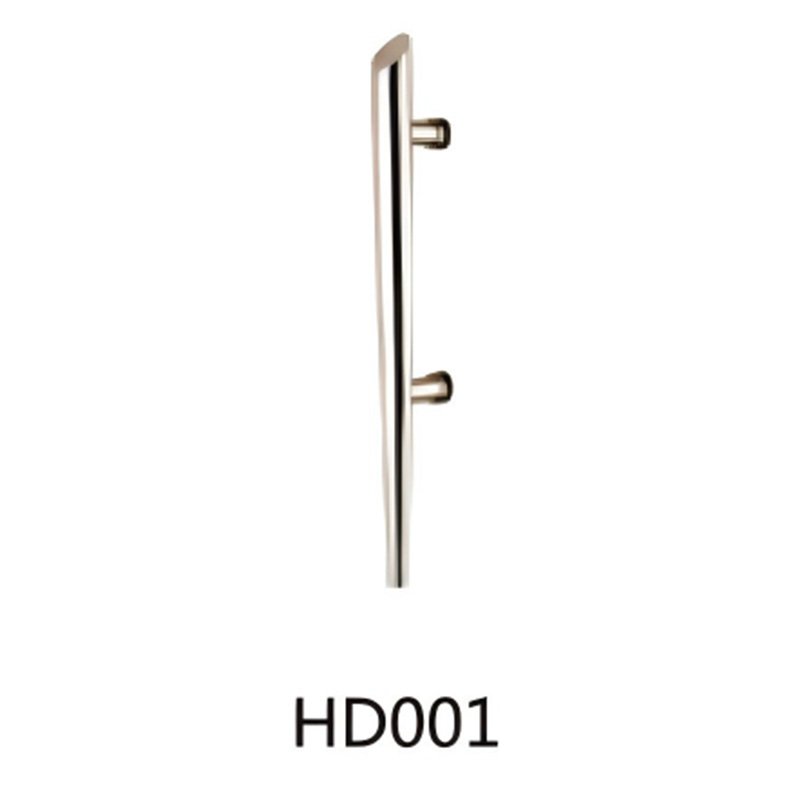

HD001

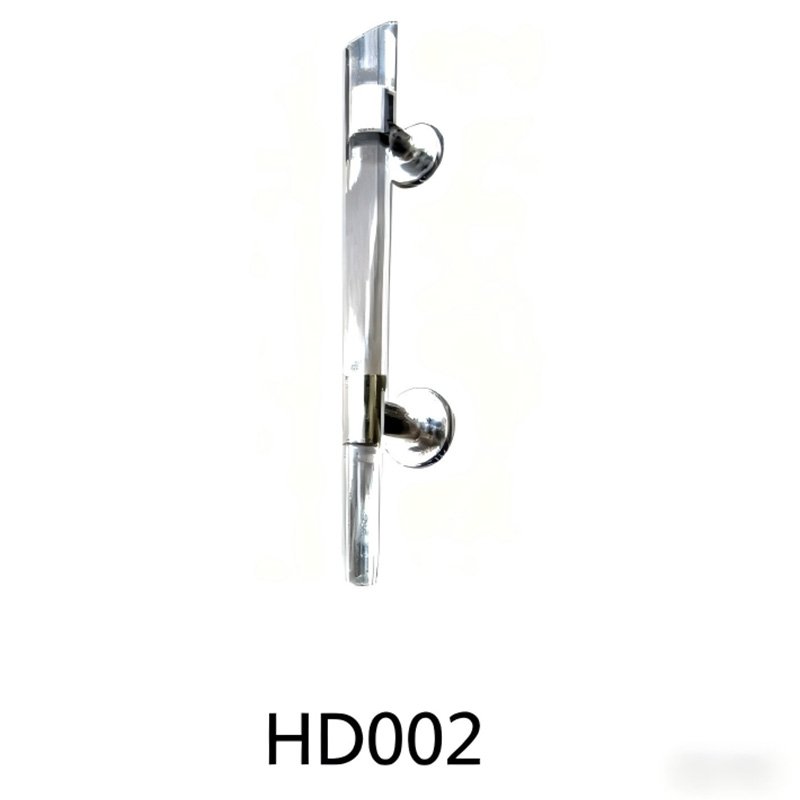

HD002

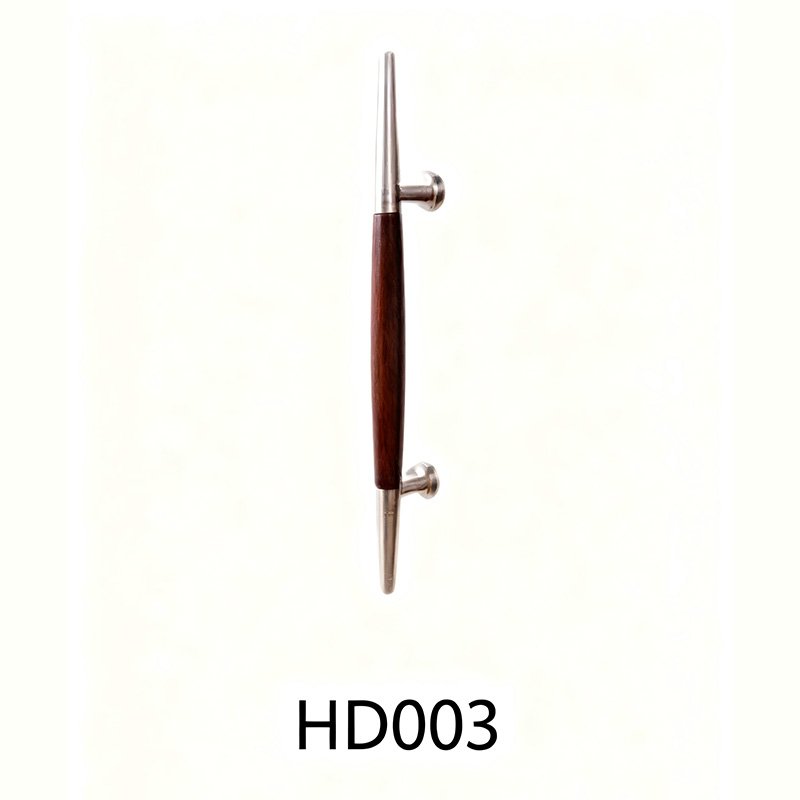

HD003

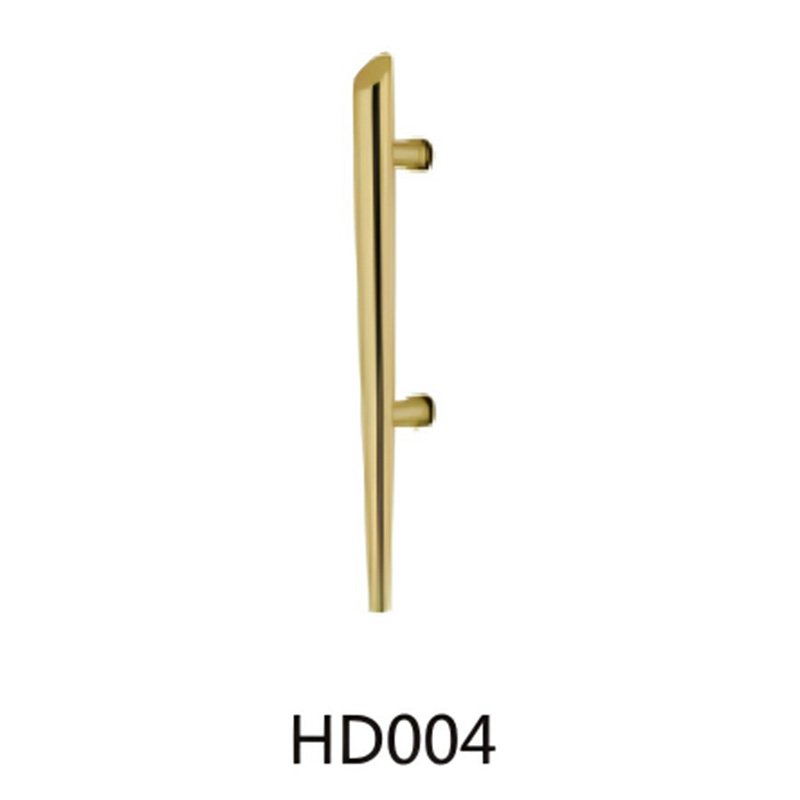

HD004
High Efficiency and Energy Saving
Anter’s tractionelevator packages use permanent magnet synchronous gearless oil-free traction machines with power as low as 1.1 kilowatts. This part possess economical and durable operating method can effectively save on operating and maintenance costs.
Smart and Convenient
Anter’s traction elevators utilize smart technologies such as Bluetooth calling, IoT remote monitoring, and access control to provide residents with a convenient and efficient way to travel within the building, while also making elevator rides safer and allowing users to enjoy the convenience brought by technology.

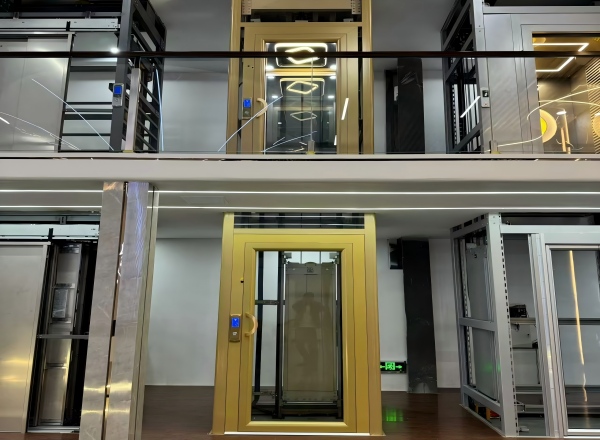

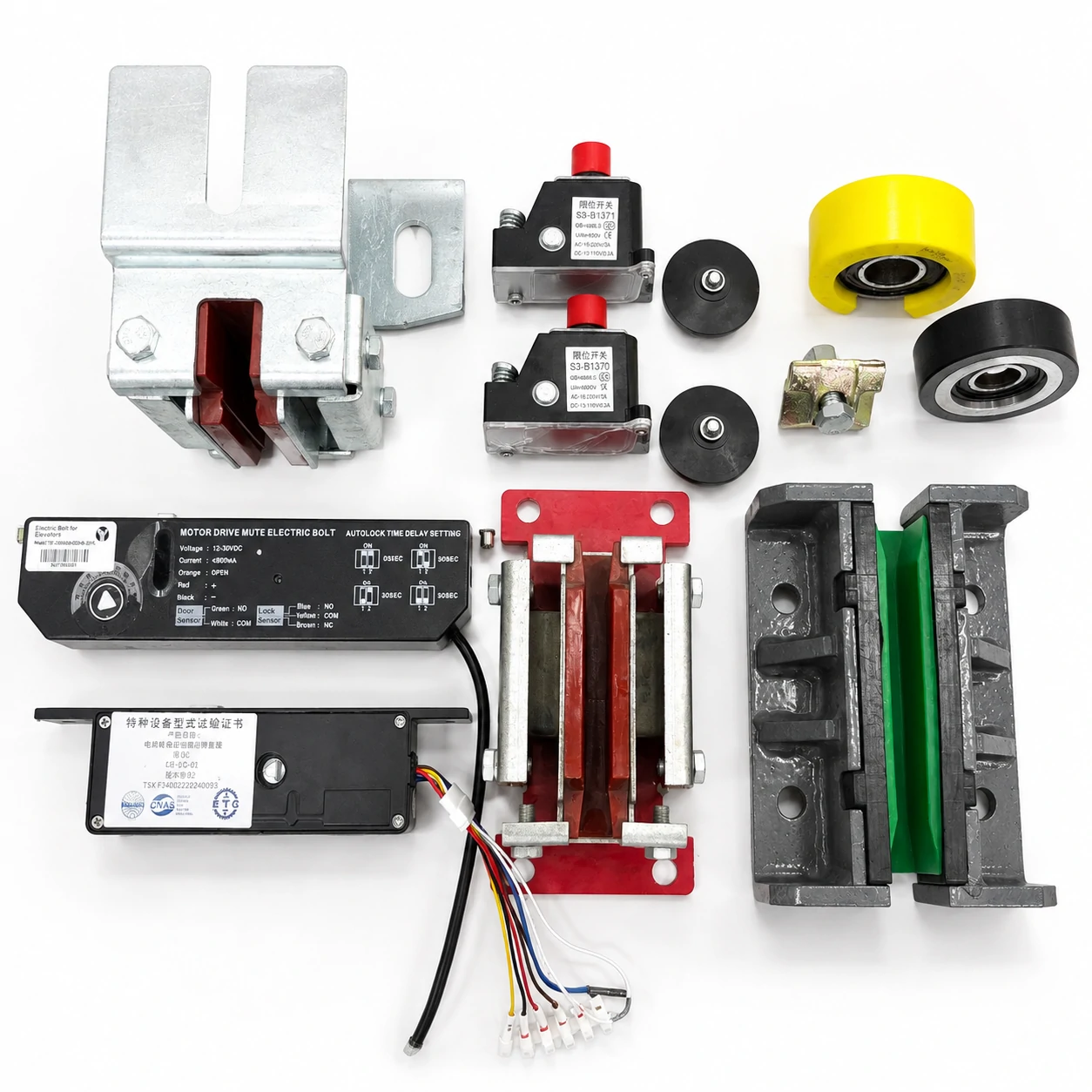

Anter Traction Elevator Systems Composition
We divide our traction elevator into eight major systems: traction system, guiding system, car, door system, weight balancing system, electric drive system, electrical control system, and safety protection system. This modular structure facilitates easy installation. Each system has a clearly defined function, ensuring efficient operation. All our systems are sourced from top domestic and international suppliers, guaranteeing quality and performance.
The elevator’s guiding system, safety protection system, and weight balancing system all ensure your safety. Furthermore, our electric drive system utilizes a superior variable frequency drive system, resulting in smoother elevator operation, greater comfort, reduced energy consumption, higher efficiency, and zero noise.
More Information about Our Home Elevator
- Size
- Drawings

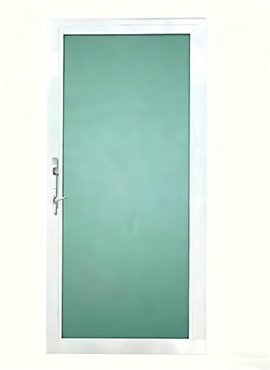

- Elevator Door Style

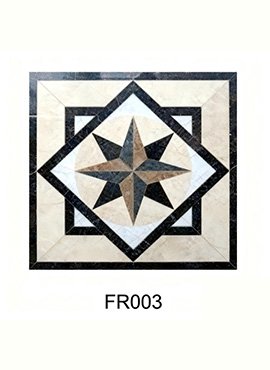

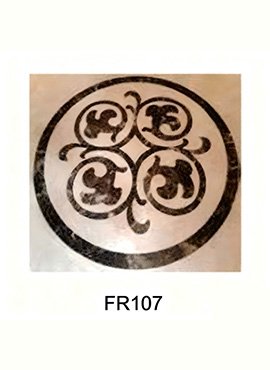

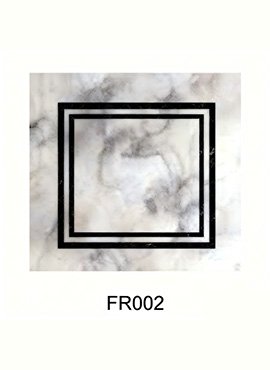

- Floor Style
| Capacity（kg） | Speed（m/s） | Car size( mm） | Door opening size（mm） | Shaft dimensions  （ mm） | |||||||
| CW – Width | OD -Depth | CH – Height | OP-Width | OPH -Height | HW – Width | HD -Depth | K – Overhead height | S – pit depth | R – Increase height | ||
| 320 | 0.3 | 860 | 800 | 2000 | 700 | 2000 | 1000 | 1210 | 2500 | 150 | ≤12000 |
| 400 | 0.3 | 1060 | 1000 | 800 | 1200 | 1410 | |||||
| 400 | 0.3 | 800 | 900 | 2200 | 700 | 2200 | 1240 | 1010 | 2700 | ||
| 400 | 0.3 | 1000 | 1100 | 800 | 1440 | 1210 | |||||
| 400 | 0.4 | 1200 | 1200 | 2000 | 800 | 1900 | 1750 | 1450 | 2900 | 300 | ≤12000 |
| 400 | 0.4 | 1300 | 1100 | 800 | 1850 | 1350 | 2900 | ||||
| 400 | 0.4 | 1050 | 1100 | 2200 | 650 | 2000 | 1420 | 1550 | 3200 | ||
| 400 | 0.4 | 1150 | 1000 | 700 | 1520 | 1540 | 3200 | ||||
Testimonials
The elevator has been installed and is very practical. It has solved the problem of elderly family members having difficulty walking and going up and down stairs. I am very grateful to the staff of Ante Elevator Company.
MichaelI love having an elevator in my villa! It’s super quiet and runs really smoothly
Maria

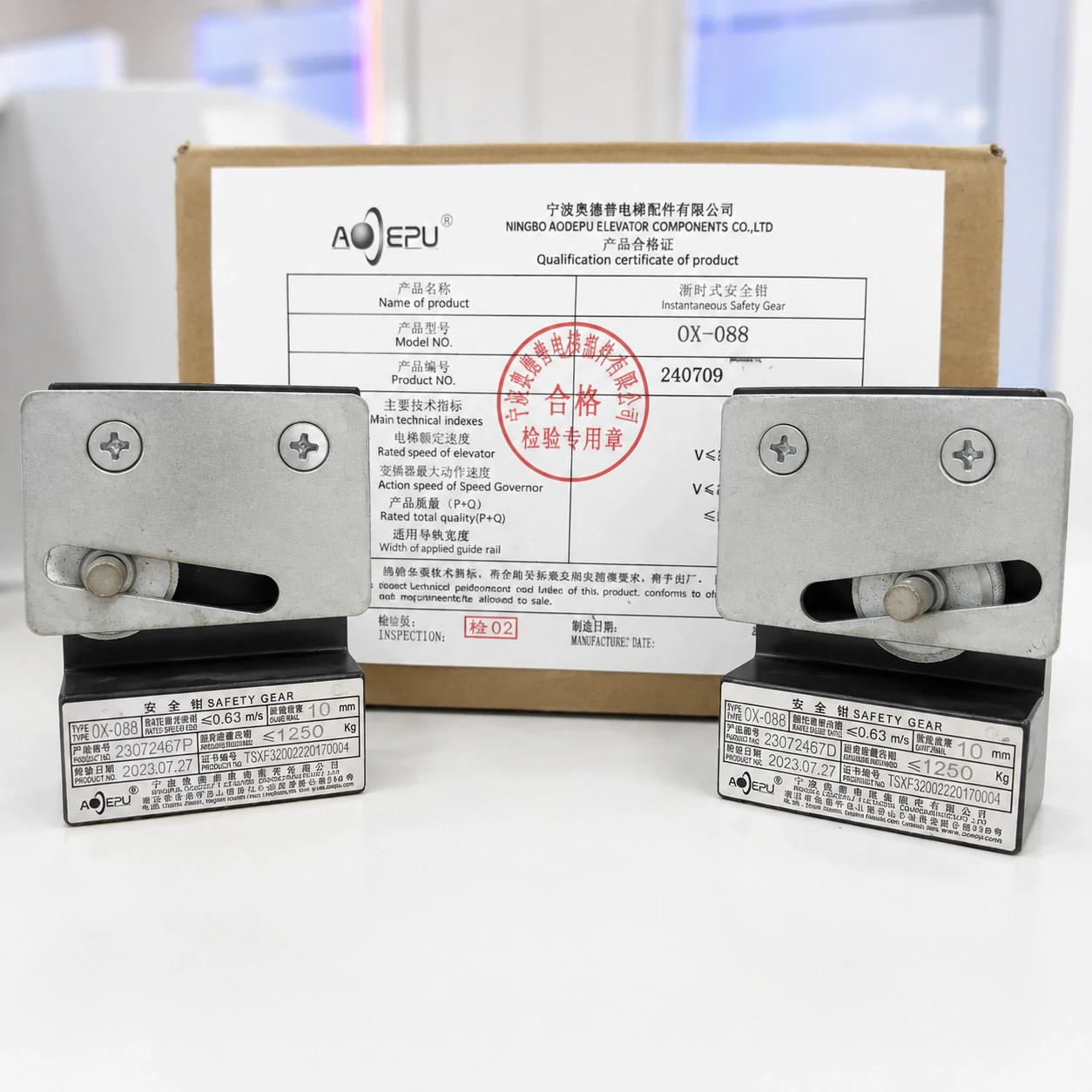

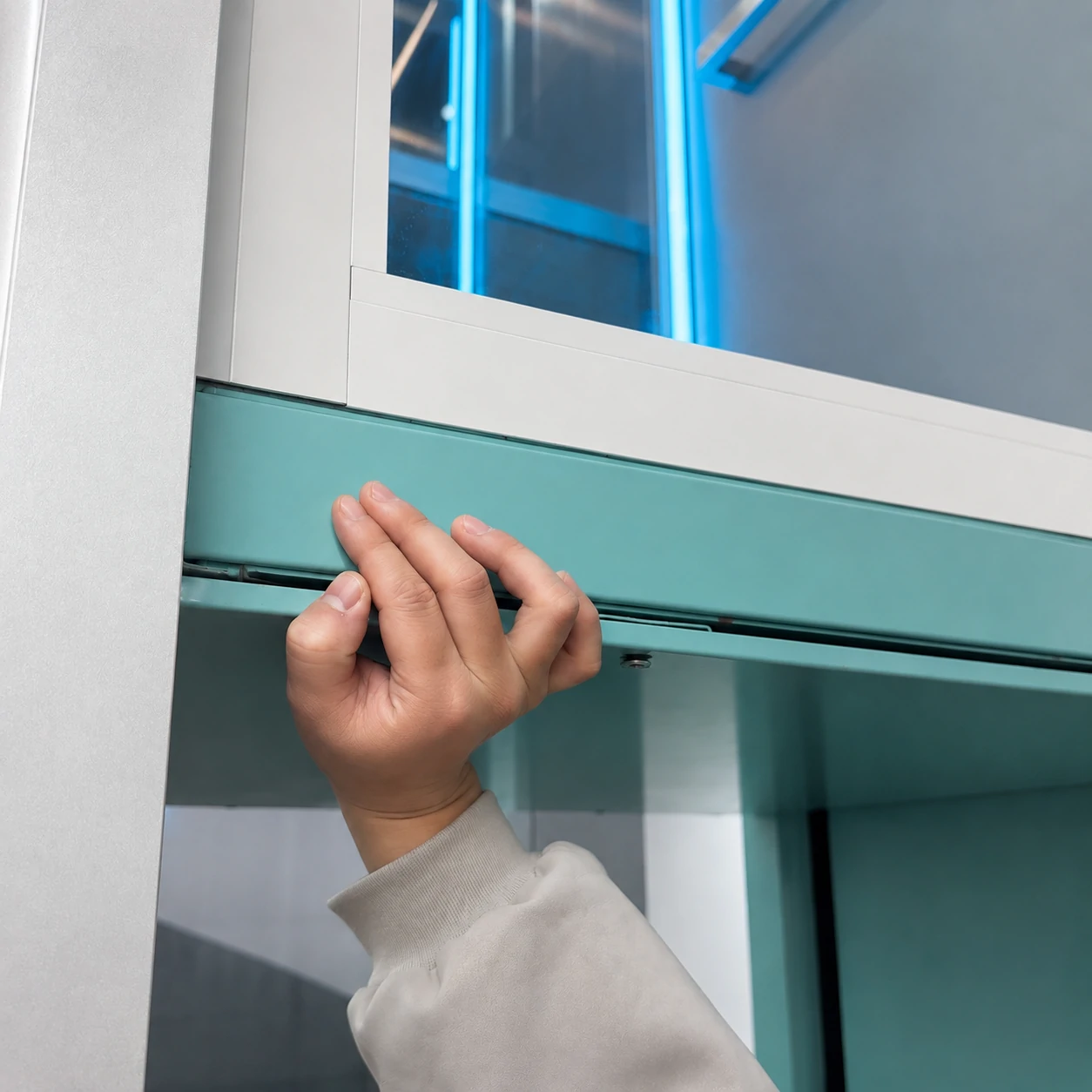

Traction elevators are very safe. They are equipped with multiple safety devices, including safety locks and speed governors, which effectively prevent falls. In addition, they also have overload protection, child locks, and anti-pinch devices.
The price of a home traction elevator varies depending on factors such as installation height, interior style, and dimensions of the car; it is not a fixed price.
You can contact our customer service for a detailed quote.
Yes, the elevator’s backup power will activate after a power outage, allowing it to take you to your designated floor.
The driving principles are different: hydraulic elevators rely on a hydraulic power source, while traction elevators primarily operate through the friction between the traction sheave and steel ropes. In terms of performance, traction elevators are stable, fast, and quiet, while hydraulic elevators are relatively noisy and slower.
